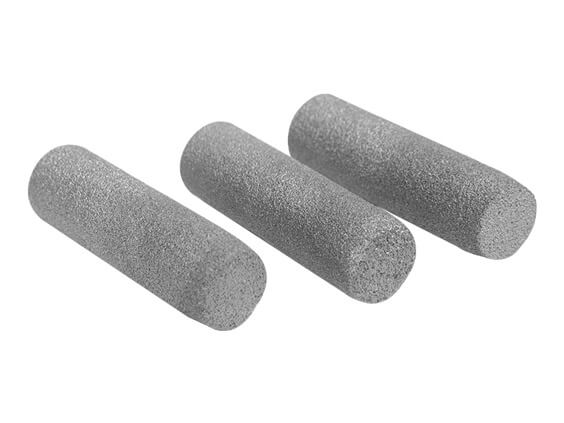

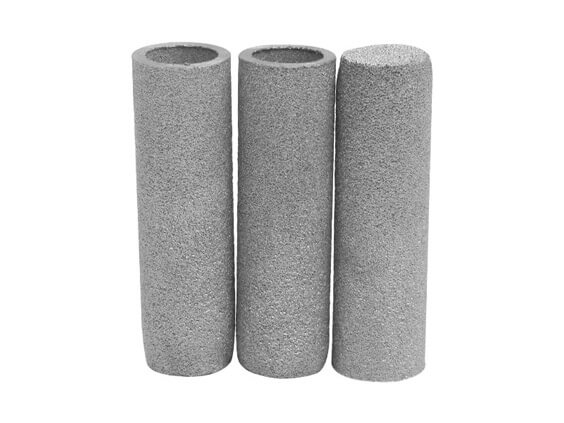

Stainless Steel Sintered Powder Filter Element 12x40

Type: Sintered Powder Filter Element
Material: 304/316L Stainless steel
OD: 12 mm
Height: 40 mm
Filtration accuracy: 1~25μm
Description:

The filtration grade of this sintered powder filter is 12x40, which can effectively remove solid particles and pollutants from liquids and gases, ensuring clean and purified fluids for your process. The unique sintering process creates a porous structure with precise pore size, achieving excellent filtration efficiency and high pollutant holding capacity.
Specifications:

Type Sintered Powder Filter Element
Filter layer 304/316L Stainless steel
Dimension 12x40 mm
Filtration accuracy 1~25μm
Origin Henan,China
Package Neutral
Video:


Feature:

High strength and pressure resistance: Stainless steel powder sintered filter cartridges are made through processes such as compression molding and sintering molding, and have high mechanical strength and pressure resistance. They can withstand high working pressure and liquid flushing, ensuring the stable operation of the filtration system.

High precision filtration: The surface of the filter element has more micropores and micropore gaps, with a more uniform pore size distribution and higher filtration efficiency, which can filter out finer particles. Its filtering accuracy range is wide, which can meet the requirements of different fields for filtering accuracy.

High temperature resistance and corrosion resistance: Stainless steel powder sintered filter element has good high temperature resistance and corrosion resistance, and can work stably in environments with high temperature, high pressure, and corrosive media. This makes the filter cartridge have a wide range of application prospects in industries such as chemical, petroleum, and pharmaceutical.

High porosity and permeability: The filter element has high porosity and permeability, with low pressure loss and high flow rate. This helps to reduce the energy consumption of the filtration system and improve filtration efficiency
