Description:

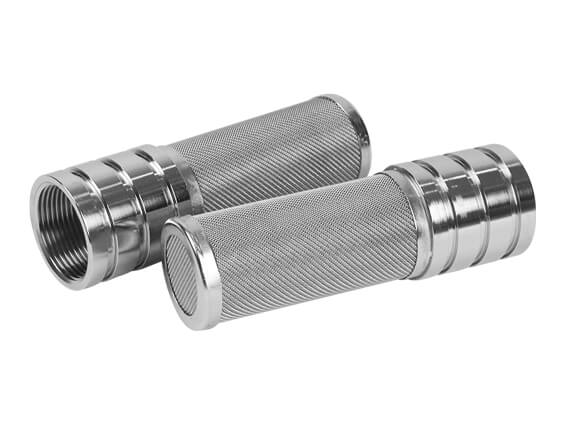

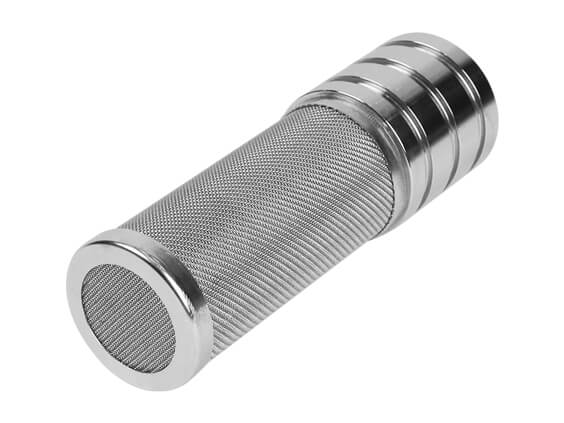

This oil filter has a size of 49x149 and is versatile. It can be customized according to your specific equipment requirements. Whether you require standard or unique sizes, our team can collaborate with you to create solutions that meet your needs. Due to the use of precise engineering design and high-quality structure, the installation of this oil filter is both fast and simple. Simply replace the old filter with this new one to enjoy the improved performance and lifespan of the device.

Specifications:

Type	Stainless Steel Oil Filter Element
Dimension	49x149
Filter layer	304 Stainless steel mesh
End caps	304
Filtration accuracy	40 mesh
Origin	Henan,China

Features:

1. High strength corrosion resistance: Made of stainless steel mesh with a chromium nickel content of ≥ 18%/8%, it can resist weak acids, weak bases, salt spray, and oxidation environments

2. Precision gradient filtering structure: Multi layer laser welding mesh design (such as 20 mesh → 50 mesh → 100 mesh gradient combination), achieving adjustable accuracy of 5-50 microns, interception efficiency ≥ 99.5% (ISO 16889 certification), while maintaining low pressure drop (<0.1MPa @ 25 ° C).

3. High temperature and high pressure resistance: Working temperature ranges from -50 ° C to 400 ° C, with an instantaneous pressure resistance of up to 10MPa (100 bar), supporting stable filtration of high viscosity oils (such as gear oil and hydraulic oil) under extreme working conditions, and a lifespan 5-8 times longer than paper filter cartridges.

4. 100% Reusable: Supports ultrasonic cleaning/backwashing, no filter material loss, porosity recovery rate ≥ 95%, adapts to the needs of circular economy, and reduces waste disposal costs by more than 60%.
