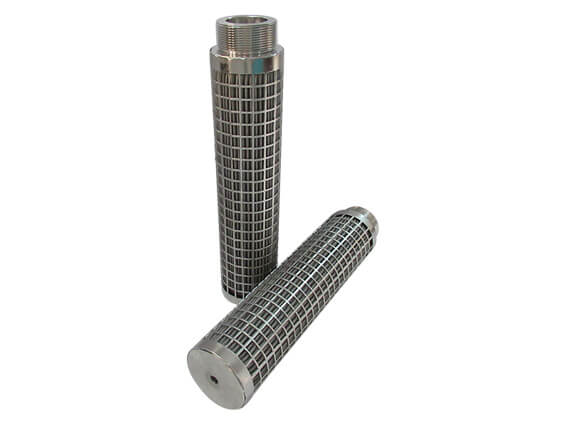

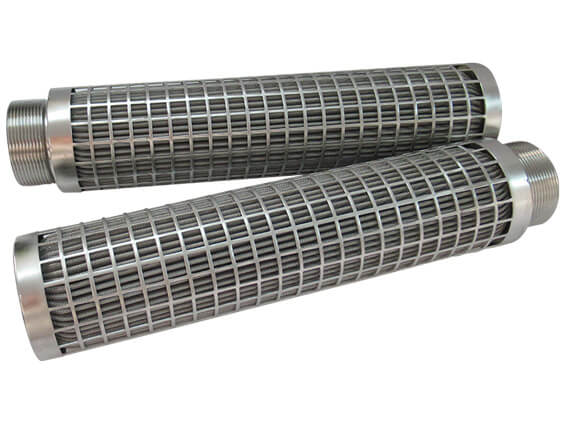

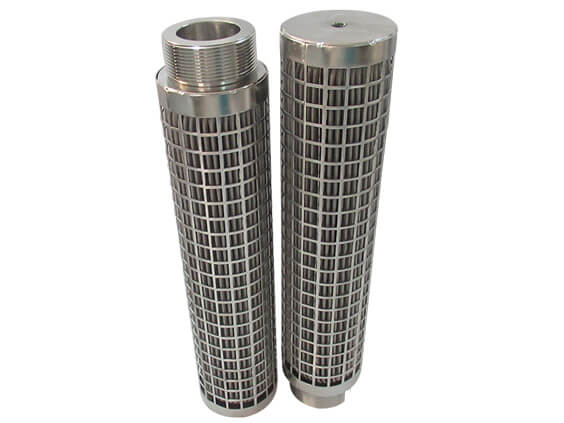

Stainless Metal Melt Filter Element

Type: Stainless Metal Melt Filter Element
Media: Stainless Steel Wire Mesh
Filtration rate: Custom Made
OD: Custom Made
Length: Custom Made
Description:

Stainless Metal Melt Filter Element are cylindrical filter elements, which are produced flat or pleated (for the enlargement of the filter surface). connection techniques is welding and crimping. Filter candles and filter cartridges are used in almost all applications in the industrial solid-liquid separation

Specifications:
Type Stainless Metal Melt Filter Element
OD Custom made
High Custom made
Media Stainless Steel Wire Mesh
Filtration rate Custom made
Max Temperature 200℃
Features and Benefits:



High temperature and high pressure resistance, chemical corrosion resistance

Excellent air permeability, large dirt holding capacity, high strength, good sealing, long life, and can be cleaned, regenerated, and used repeatedly.

It can be made into cylindrical or folded cylindrical structure, the filter area after folding is 3-5 times of the cylindrical area

Working temperature: -60-500℃

The filter element can withstand the maximum pressure difference: 2MPa



Application:



The Candle Filters are, as all pressure filters, operating on a batch cycle and may be seen in process lines handling titanium dioxide, flue gas, brine clarification, red mud, china clay, fine chemicals and many other applications that require efficient low moisture cake filtration or high degree of polishing.
