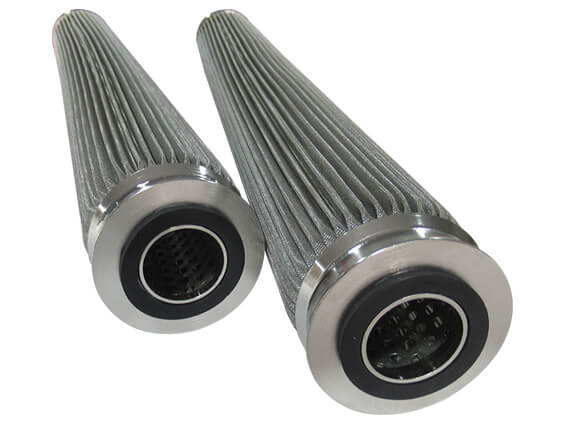

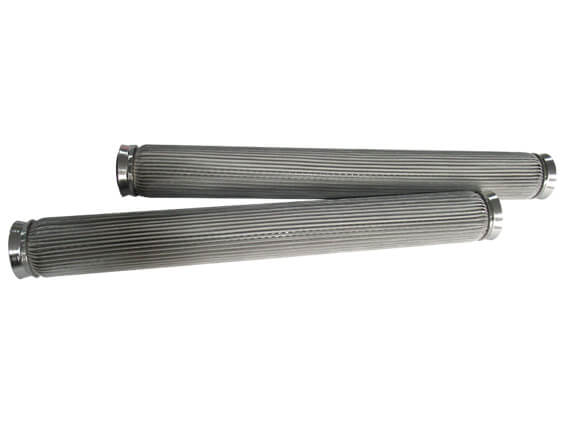

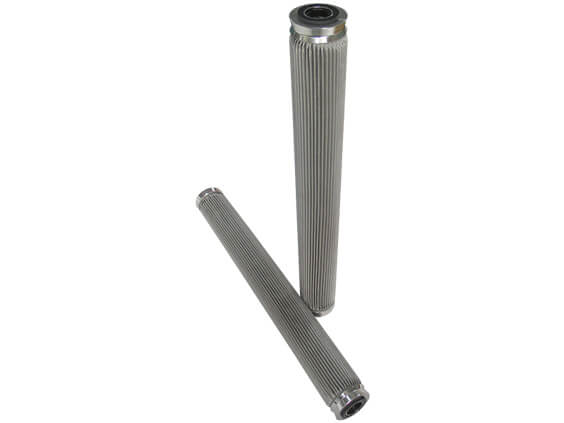

Stainless Candle Pleated Filter Element

Type: Stainless Candle Pleated Filter Element
Media: Stainless Steel Wire Mesh
Filtration rate: 20μm
OD: Custom Made
High: Custom Made
Description:

The Stainless Melt Pleated Filter Element adopts all stainless steel machined end caps; punching frame; 304 or 316L stainless steel metal mesh fold-wave welding.

Specifications:
Type Stainless Candle Pleated Filter Element
OD Custom made
High Custom made
Media Stainless Steel Wire Mesh
Filtration rate 20 μm
Max Temperature 200℃
Features and Benefits:



High temperature and high pressure resistance, chemical corrosion resistance

Excellent air permeability, large dirt holding capacity, high strength, good sealing, long life, and can be cleaned, regenerated, and used repeatedly.

It can be made into cylindrical or folded cylindrical structure, the filter area after folding is 3-5 times of the cylindrical area

Working temperature: -60-500℃

The filter element can withstand the maximum pressure difference: 2MPa



Application:



Stainless steel candle filter is widely used in environmental protection, petroleum, chemical, medical treatment, high temperature gas filtration, scientific research, metallurgy, food, machinery and other industries.
