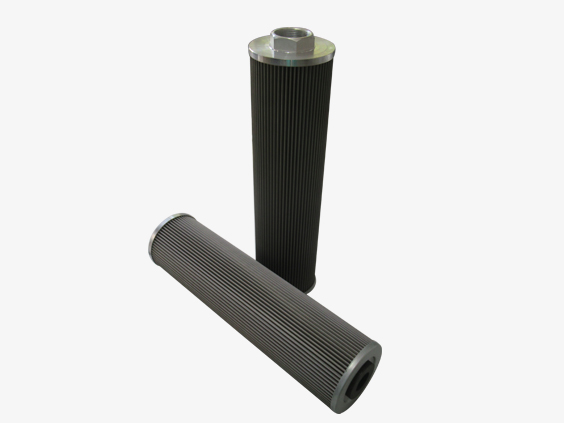

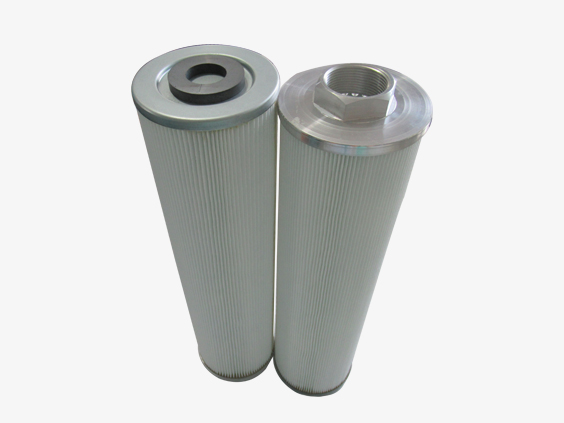

Adsorption Filtration Iron Powder SS magnetic Water Filter can also be combined with other filter media to filter the paper filter on the oil return. The filter paper filter element is formed by bonding the inner and outer cylinders and the oil filter paper sandwiched therebetween. The inner and outer cylinders are rolled from a thin steel plate, and the plate is punched with a plurality of oil-filled round holes; the filter paper is folded into a star shape to increase the flow area. The central rod of the filter element is equipped with a magnetic filter core composed of a plurality of magnetic rings and nylon spacers.
Type | Adsorption Filtration Iron Powder SS magnetic Water Filter |
OD | 118mm |
Length | 450mm |
Filtration Rate | 10μm |
Media | Stainless Steel |
Separation liquid medium contains fine iron scrap components, good iron removal performance and strong adsorption capacity
Magnetic filters are used in the food industry, pharmaceuticals, cosmetics, fine chemicals and other industries to meet the process requirements of liquid media.
