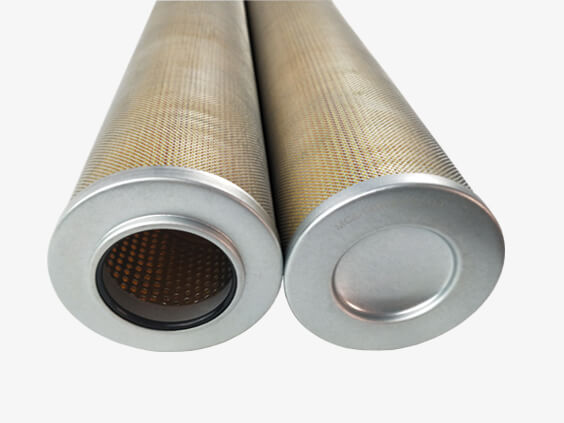

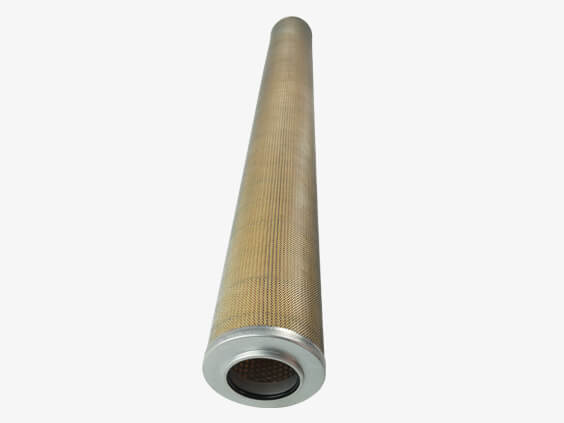

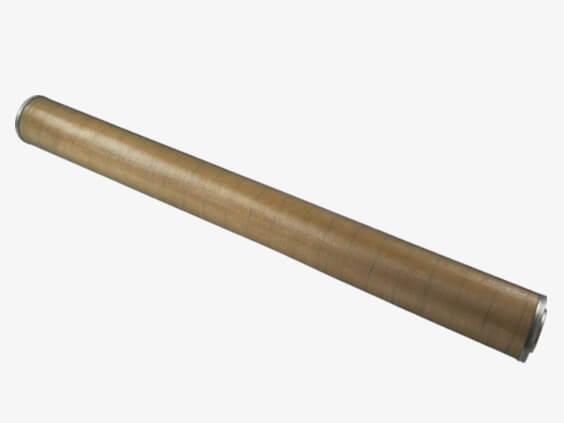

Replace Oil Gas Separator Filter MCC1401E100H13

Material: Glassfiber
Length: 383mm
Outer diameter: 33mm
End Caps: Galvanized
Filtration rate: 5 μm
Description:



Fluid handling: refineries used in solvents, acids, chemicals, hydrocarbons, water and other liquids,Chemical and petrochemical processes must eliminate some harmful particles.

High pressure gas treatment: applied to natural gas processing system to remove 99.98% of aerosol suspended solids and other impurities in natural gas fluid. Provides protection for critical components of PAL processing equipment such as compressors, turbine blades, etc.

High pressure water jet, treatment:The MCC1401 high pressure filter is a reproducible high quality injection for your water and oil production operations.



Specifications:
Product Oil Gas Separator Filter MCC1401E100H13
Type Cartridge
Media Glassfiber
End caps Galvanized
Out Diameter 33mm
Length 383mm
Micron 5
Application:





Removal of contaminants from natural gas pipelines at the inlet of the compressor station to avoid damage to the compressor and prevent wear of the cylinders and valves.

Prevent the injection of solid and liquid contaminants before the natural gas storage station.

Removal of contaminants from fuel gas lines in engines, power plants and pre-plants.

Removal of solid and liquid contaminants in front of the gas treatment station to prevent contamination of process equipment and poisoning of the catalytic bed.

Downstream of the reciprocating compressor to remove the lubricating oil carried in the air stream.

Prevent fracturing and sanding of desiccant and contamination of paraffin and asphaltenes before the solid desiccant bed.

Remove water and pipeline contaminants from the inlet gas stream at the dewatering and treatment station.



Feture:



1. The filtration effect of the particle suspension in the gas reaches 99%
2. It is recommended to replace the differential pressure: when the temperature reaches 135 degrees Celsius, the replacement pressure difference is 4.1 bar.
3. High filtration area, up to 54 square feet, long service life
4. Filtration accuracy can reach 0.5-40 microns
