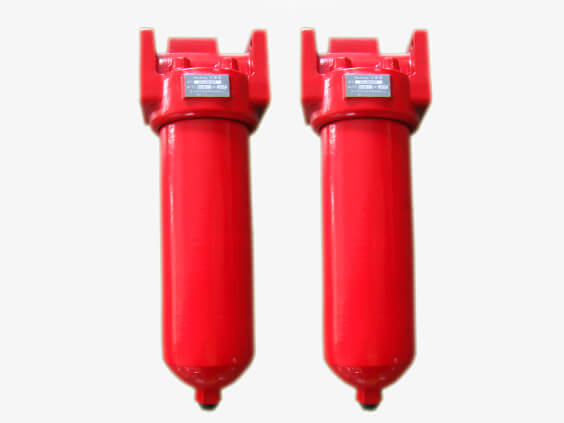

ZU-A QU-A WU-A XU-A Return Line Filter Series

Type: ZU-A QU-A WU-A XU-A Return Line Filter
Dia(mm): 40
Flow(L/min): 160
Filtration rate(μm): 1,3,5,10,20,30
Weight(kg): 6.7
Description:

These series filters are retum line ones.the filter element of QU-A,ZU-A,XU-A series is made of glass fiber,paper,wire mesh &notched wire while that of XU-A series is of wound brass wire.they have the same working pressure but different filtration fineness.differential pressure indicator will act when the pressure drop across filter element attains 0.35MPa.

Specifications:
Type:ZU-A QU-A WU-A XU-A Return Line Filter

Dia(mm):40

Flow(L/min):160

Filtration rate(μm):1,3,5,10,20,30

Weight(kg):6.7
Feature:
The filter is installed at the oil return line of the hydraulic system,Used to filtration out all kinds of magazines in oil,Keep the oil flowing back into the tank clean,It is beneficial to the circulation of oil in the system。

Options:
Model Flow(L/min) Filtration rate(μm) Dia(mm) Press(MPa) Power Model of element
□U-A10×*P 10 1,3,5,10,20,30 10 1.6 24V/48W 220V/50W TZX2-10×*#
□U-A25×*P 25 1,3,5,10,20,30 15 1.6 24V/48W 220V/50W TZX2-25×*#
□U-A40×*P 40 1,3,5,10,20,30 20 1.6 24V/48W 220V/50W TZX2-40×*#
□U-A63×*P 63 1,3,5,10,20,30 25 1.6 24V/48W 220V/50W TZX2-63×*#
□U-A100×*P 100 1,3,5,10,20,30 32 1.6 24V/48W 220V/50W TZX2-100×*#
□U-A160×*P 160 1,3,5,10,20,30 40 1.6 24V/48W 220V/50W TZX2-160×*#
□U-A250×*FP 250 1,3,5,10,20,30 50 1.6 24V/48W 220V/50W TZX2-250×*#
□U-A400×*FP 400 1,3,5,10,20,30 65 1.6 24V/48W 220V/50W TZX2-400×*#
□U-A630×*FP 630 1,3,5,10,20,30 80 1.6 24V/48W 220V/50W TZX2-630×*#
□U-A800×*FP 800 1,3,5,10,20,30 90 1.6 24V/48W 220V/50W TZX2-800×*#
□U-A1000×*P 1000 1,3,5,10,20,30 100 1.6 24V/48W 220V/50W TZX2-1000×*#
□U-A25×*BP 25 1,3,5,10,20,30 20 1.6 24V/48W 220V/50W TZX2-25×*#
□U-A40×*BP 40 1,3,5,10,20,30 20 1.6 24V/48W 220V/50W TZX2-40×*#
□U-A63×*BP 63 1,3,5,10,20,30 32 1.6 24V/48W 220V/50W TZX2-63×*#
□U-A100×*BP 100 1,3,5,10,20,30 32 1.6 24V/48W 220V/50W TZX2-100×*#
□U-A160×*BP 160 1,3,5,10,20,30 38 1.6 24V/48W 220V/50W TZX2-160×*#
□U-A250×*BP 250 1,3,5,10,20,30 50 1.6 24V/48W 220V/50W TZX2-250×*#
□U-A400×*BP 400 1,3,5,10,20,30 65 1.6 24V/48W 220V/50W TZX2-400×*#
