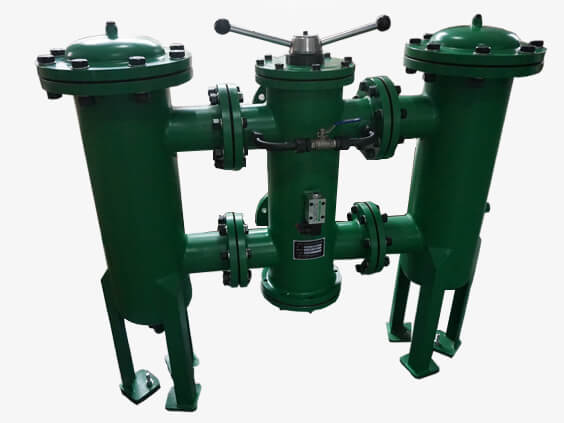

SDRLF Duplex Large Flow Rate Return Line Filter Series

Model: SDRLF-A6500×*P
Dia(mm): 250
Flow(L/min): 6500
Filtration rate(μm): 10
Weight(kg): 915
Description:

SDRLF series filter is composed of two single bowl filters and a 2-position 6-way directional valve ,it is simple in construction and easy to used ,there is a by-pass valve and a contamination indicator in it ,for protecting the hydraulic system safety.

Specifications:
Model:
SDRLF-A6500×*P
Dia(mm)

250

Flow(L/min)
6500
Filtration rate(μm)
10
Weight(kg)
915
Feature:
The feature of this filter allows continuous operation even during element is changed for which is clogged by contaminants. After opening the balance valve and then turn the directional valve,the other filter filter begins to work,the clogged element should be changed in time.
Application:
This series filter is widely used in the hydraulic systems of heavy duty mining and metallergical machines.
