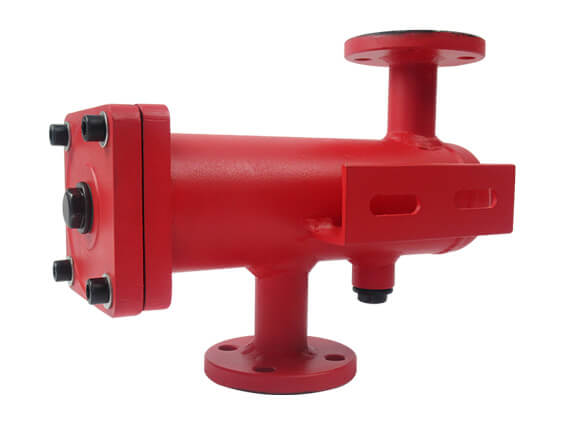

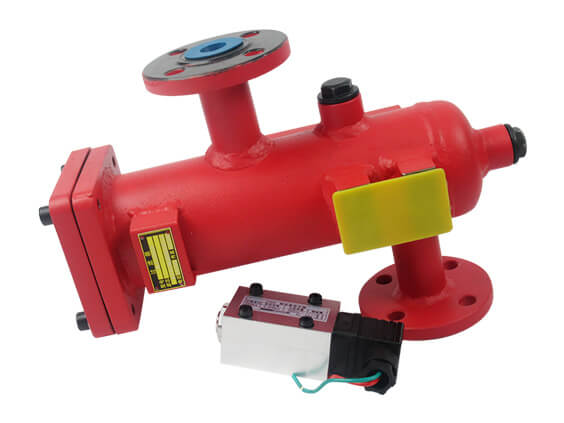

Return Line Oil Filter RLF-110x30P,Custom Oil Filter,Return Line Filter Series

Description:

Return Line Oil Filter RLF-110x30P is an essential component for any oil filtration system. Designed to filter oil that is returning to the oil tank, this filter effectively ensures the cleanliness and purity of the oil, thereby enhancing the longevity and efficiency of the machine it serves.

Specifications:

Model:	Return Line Oil Filter RF-240×20
Dia(mm)	25
Flow(L/min)	110
Filtration rate(μm)	1,3,5,10,20,30
Weight(kg)	4.2
Press(MPa)	0.2

Feature:

1.This filter can be installed on the top of the cover directly or installed with pipe.
2.It has indicator and by-pass valve.when the dirt accumulates in the element or the temperature of the system is too low,and the oil inlet pressure reaches 0.35MPa,the ineicator signals showing that the element should be cleaned,changed or raise the temperature.if no maintenance is done and the pressure reaches 0.4MPa,the by-pass valve will open.
3.the filter element is made of glass fiber,so it has high filtration accuracy,low initial pressure loss,high dirt-holding capacity and so on.

Options:

Model	Dia(mm)	Flow(L/min)	Filtration rate(μm)	Press(MPa)	Weight(kg)	Model of element
RLF-60x*P	25	60	1,3，5，10，20,30	1.6	3.7	SFX-60x*
RLF-110×*P	25	110	1,3，5，10，20,30	1.6	4.2	SFX-110x*
RLF-160×*P	40	160	1,3，5，10，20,30	1.6	6.8	SFX-160x*
RLF-240×*P	40	240	1,3，5，10，20,30	1.6	7.5	SFX-240x*
RLF-330×*P	50	330	1,3，5，10，20,30	1.6	10.2	SFX-330x*
RLF-500×*P	50	500	1,3，5，10，20,30	1.6	11.3	SFX-500x*
RLF-660×*P	80	660	1,3，5，10，20,30	1.6	24.4	SFX-660x*
RLF-850×*P	80	850	1,3，5，10，20,30	1.6	26	SFX-850x*
RLF-950×*P	100	950	1,3，5，10，20,30	1.6	34.1	SFX-950x*
RLF-1300×*P	100	1300	1,3，5，10，20,30	1.6	38.8	SFX-1300x*
