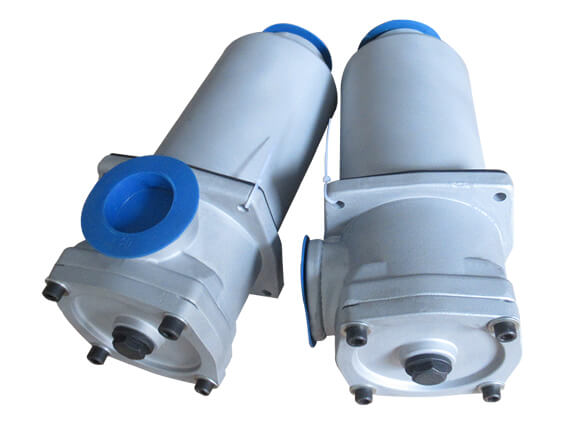

  1. /d/pic/return-line-oil-filter-rf-240%C3%9720-3.jpg
  2. Return Line Oil Filter RF-240×20
  3. Return Line Oil Filter RF-240×20

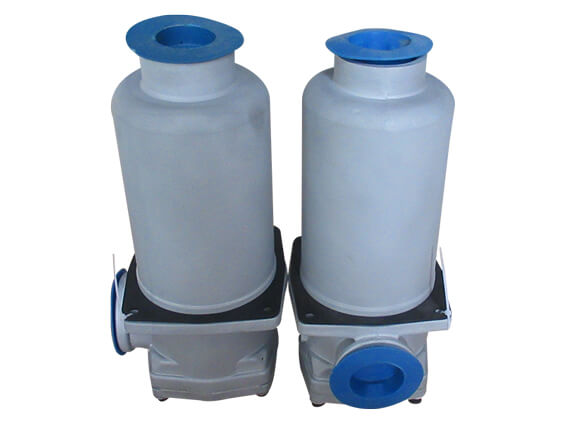

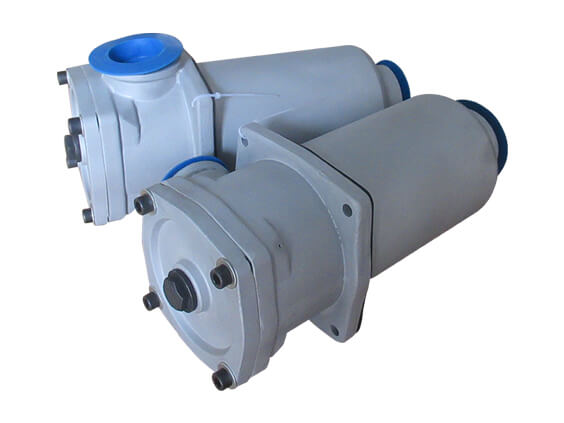

Return Line Oil Filter RF-240×20

Model: RF-240×20
Dia(mm): 40
Flow(L/min): 240
Filtration rate(μm): 1,3,5,10,20,30
Weight(kg): 1.8
Description:

Return Line Oil Filter RF-240×20 is used in the hydraulic system for line filtration.the filter can filter metal impurity rubber impurity or other contamination,and keep the tank clean.

Specifications:
Model:
Return Line Oil Filter RF-240×20
Dia(mm)

40

Flow(L/min)
240
Filtration rate(μm)
1,3,5,10,20,30
Weight(kg)
1.8
Press(MPa)
1
Feature:
1.This filter can be installed on the top of the cover directly or installed with pipe.
2.It has indicator and by-pass valve.when the dirt accumulates in the element or the temperature of the system is too low,and the oil inlet pressure reaches 0.35MPa,the ineicator signals showing that the element should be cleaned,changed or raise the temperature.if no maintenance is done and the pressure reaches 0.4MPa,the by-pass valve will open.
3.the filter element is made of glass fiber,so it has high filtration accuracy,low initial pressure loss,high dirt-holding capacity and so on.
Options:
Model Dia(mm) Flow(L/min) Filtration rate(μm) Press(MPa) Weight(kg) Model of element
RF-60×*YC 20 60 1,3,5,10,20,30 1 0.4 SC0060R*BN/HC
RF-110×*YC 20 110 1,3,5,10,20,30 1 0.9 SC0110R*BN/HC
RF-160×*YC 40 160 1,3,5,10,20,30 1 1.1 SC0160R*BN/HC
RF-240×*YC 40 240 1,3,5,10,20,30 1 1.8 SC0240R*BN/HC
RF-330×*YC 50 330 1,3,5,10,20,30 1 2.3 SC0330R*BN/HC
RF-500×*YC 50 500 1,3,5,10,20,30 1 3.2 SC0500R*BN/HC
RF-660×*YC 80 660 1,3,5,10,20,30 1 4.1 SC0660R*BN/HC
RF-850×*YC 80 850 1,3,5,10,20,30 1 13 SC0850R*BN/HC
RF-950×*YC 90 950 1,3,5,10,20,30 1 20 SC0950R*BN/HC
RF-1300×*YC 100 1300 1,3,5,10,20,30 1 41.5 SC1300R*BN/HC
