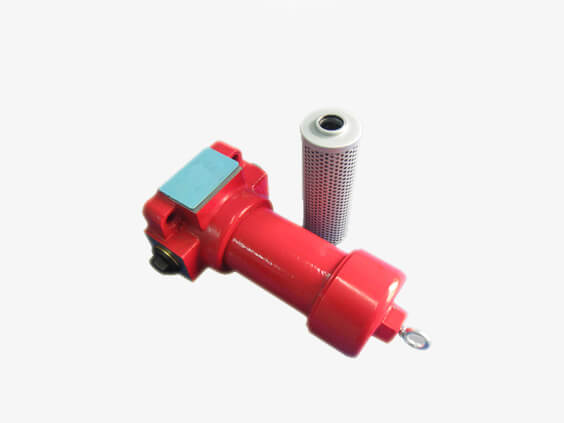

ZU-H QU-H High Pressure Line Filter Series

Model: ZQU-H160×*p
Flow(L/min): 160
Filtration rate(μm): 1,3,5,10,20,30
Press(MPa): 32
Weight(kg): 18.2
Description:

ZU-H QU-H series filters are of high pressure type and used in the pressure line of hydraulic system.filter element is made of glass fiber or paper,differential pressure indicator signals when the pressure drop across fiter element reaches 0.35MPa.

Specifications:
Model
ZQU-H160×*p
Model element

HX-160×*

Flow(L/min)
160
Filtration rate(μm)
1,3,5,10,20,30
Press(MPa)
32
Weight(kg)
18.2
Power(V/W)
24/48 220/50
Feature:

The utility model has the advantages of high filtering precision, large oil passing capacity, academician Sun Shixia, large amount of dirt receiving, etc.

Options:
Model Flow(L/min) Filtration rate(μm) Press(MPa) Weight(kg) Power(V/W) Model of element
ZQU-H10×*p 10 1,3,5,10,20,30 32 3.6 24/48 220/50 HX-10×*
ZQU-H25×*p 25 1,3,5,10,20,30 32 5.0 24/48 220/50 HX-25×*
ZQU-H40×*p 40 1,3,5,10,20,30 32 8.0 24/48 220/50 HX-40×*
ZQU-H63×*p 63 1,3,5,10,20,30 32 9.8 24/48 220/50 HX-63×*
ZQU-H100×*p 100 1,3,5,10,20,30 32 12 24/48 220/50 HX-100×*
ZQU-H160×*p 160 1,3,5,10,20,30 32 18.2 24/48 220/50 HX-160×*
ZQU-H250×*FP 250 1,3,5,10,20,30 32 23 24/48 220/50 HX-250×*
ZQU-H400×*FP 400 1,3,5,10,20,30 32 33.8 24/48 220/50 HX-400×*
ZQU-H630×*FP 630 1,3,5,10,20,30 32 42 24/48 220/50 HX-630×*
ZQU-H800×*FP 800 1,3,5,10,20,30 32 52 24/48 220/50 HX-800×*
