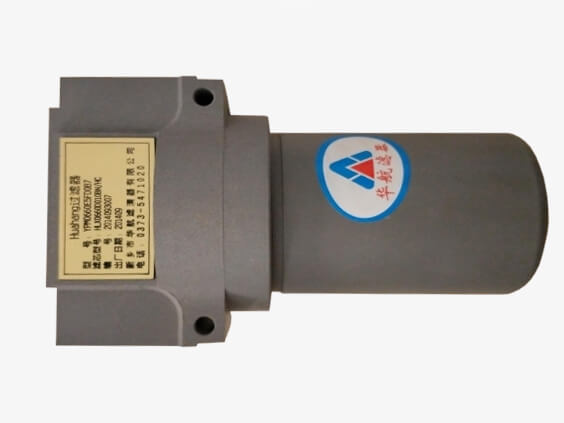

YPM Pressure Line Filter Series

Model: YPM660
Flow(L/min): 660
Filtration rate(μm): 3,5,10,20,30,40,60
working Press(MPa): 6.3,16,32
Weight(kg): 18.6
Description:

The YPM series can be used in the pressure line of hydraulic system to filter solid grain and gum material in the working medium,so the pollution is validly controlled.differential pressure indicator and by-pass valve can be equipped according to the need.element stuff adopts non-weaving,inorganic fiber cotton and wood syrup paper sintered,stainless steel felt and stainless steel weave mesh.the top and the bottom of the hull body adopt forging aluminum piece,and the physical volume is small,the weight is light,the structure is exquisite and the shape is nice.

Specifications:
Model
YPM660
Flow(L/min)

660

Filtration rate(μm)
3,5,10,20,30,40,60
Working Press(MPa)
6.3,16,32
Weight(kg)
18.6
Working medium:
mineral oil
Emulsion
Water - ethylene glycol
Phosphate hydraulic oil

Options:
Model Flow(L/min) Filtration rate(μm) Working Press(MPa) Weight(kg)
YPM060 60 3,5,10,20,30,40,60 6.3,16,32 1.3
YPM110 110 3,5,10,20,30,40,60 6.3,16,32 2.1
YPM160 160 3,5,10,20,30,40,60 6.3,16,32 2.9
YPM240 240 3,5,10,20,30,40,60 6.3,16,32 4.1
YPM330 330 3,5,10,20,30,40,60 6.3,16,32 5.8
YPM420 420 3,5,10,20,30,40,60 6.3,16,32 11.3
YPM660 660 3,5,10,20,30,40,60 6.3,16,32 18.6
