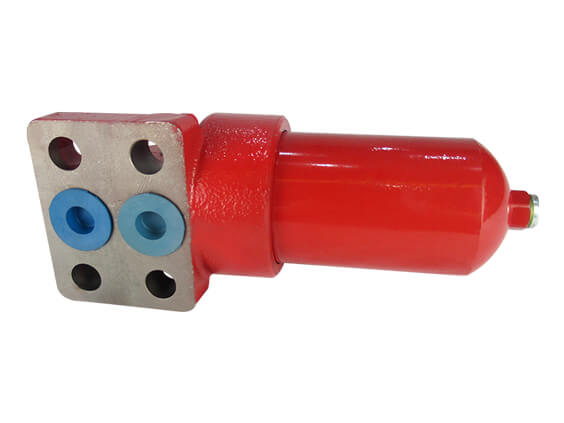

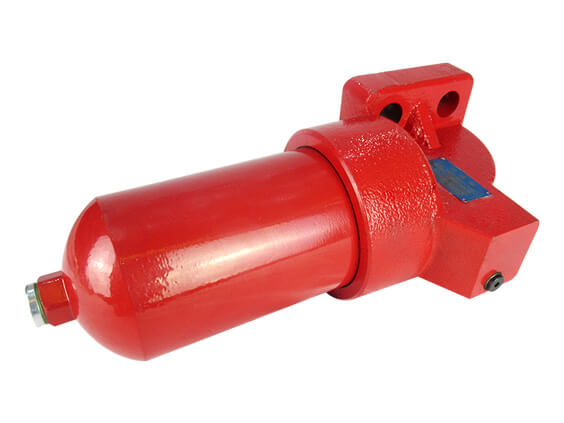

Pressure Filter DFB-H240x10C

Type: Huahang Pressure Filter DFB-H240x10C
Flow(L/min): 240
Filtration rate(μm): 20
Press(MPa): 32
Material: Fiberglass,Metal mesh

The DFB series high-efficiency high-pressure plate filter has the characteristics of compact installation structure and small volume. The filter element adopts imported glass fiber filter material, which has the advantages of high filtration accuracy, large oil passing capacity, low original resistance, and large pollutant holding capacity. Its filtration accuracy is calibrated with absolute filtration accuracy, and the filtration ratio β 3 β 5 β 10 β 20 ≥ 200, filtration efficiency η≥ 99.5%.

Product:Huahang Pressure Filter DFB-H240x10C
Filtration rate(μm):20
Material:Fiberglass,Metal mesh
Compared with the same flow rate filter, the structure is compact and the volume is small
Use a wide range of pressure
Easy to change filter cartridge
The filter is provided with a bypass valve and a pressure differential signaling device, and the double protection function is provided
