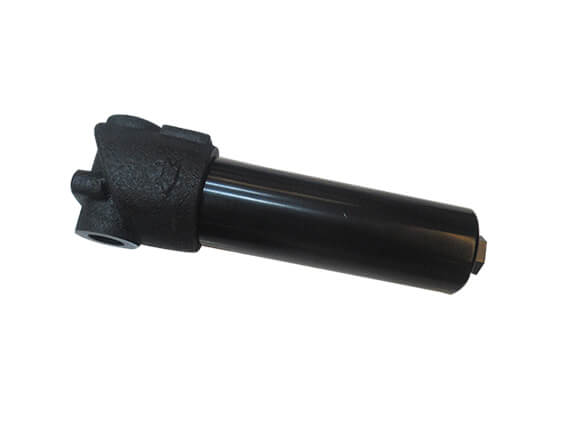

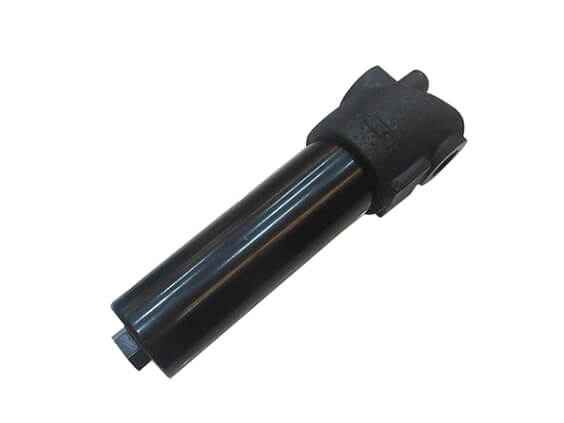

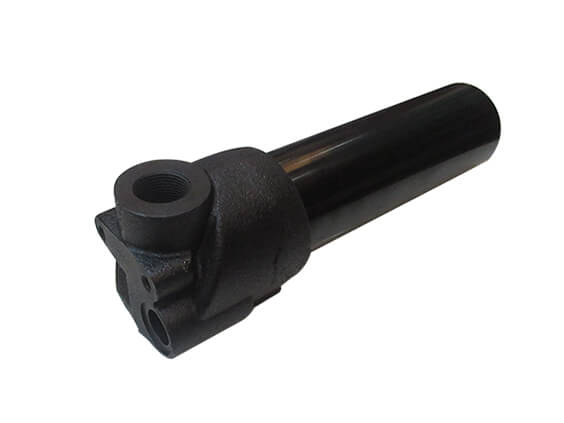

Pipeline Filter

Model: PHA060
Working medium: mineral oil, emulsion, water-glycol, phosphate ester hydraulic oil, water
Filtration accuracy: 3um, 6um, 12um, 25um, 5um, 10um, 20um, 30um, 40um, 60um, etc
Working pressure (Max): 21MPa
Working temperature: -25~110 °C
Description:

The Pipeline Filter PHA060 is installed in the hydraulic system pressure line to filter out solid particles and colloidal substances in the working medium, effectively controlling the pollution degree of the working medium. The differential pressure transmitter and bypass valve can be assembled according to your needs.

The filter element is made of non-woven fabric, glass fiber, cotton pulp filter paper, stainless steel sintered felt and stainless steel metal mesh. The upper and lower casings are all made of aluminum forgings, which are small in size, light in weight, compact in structure, beautiful in appearance and reliable in performance.

Specifications:

1. Working medium: mineral oil, emulsion, water-glycol, phosphate ester hydraulic oil, water

2. Working pressure (Max): 21MPa

3. Working temperature: -25~110 °C

4. Nominal flow: 060, 110, 160, 240, 330, 420, 660, etc.

5. Filtration accuracy: 3um, 6um, 12um, 25um, 5um, 10um, 20um, 30um, 40um, 60um, etc.

6. Transmitter signal pressure difference: 0.5MPa

7. Bypass valve opening pressure difference: 0.6MPa
Application field:

1. Metallurgy: used for filtration of hydraulic systems of rolling mills and continuous casting machines and filtration of various lubrication equipment.

2. Petrochemical: Separation and recovery of products and intermediate products in refining and chemical production processes, and oilfield injection of well water and natural gas in addition to particle filtration.

3. Textile: Purification and uniform filtration of polyester melt in the drawing process, protection and filtration of air compressor, degreasing and dehydration of compressed gas.

4, electronics and pharmaceuticals: reverse osmosis water, deionized water pretreatment filtration, washing liquid and glucose pretreatment filtration.

5. Thermal power and nuclear power: purification of gas turbine, boiler lubrication system, speed control system, bypass control system oil, purification of feed water pump, fan and dust removal system.

Working principle:

As the liquid enters the basket through the barrel, solid foreign particles are blocked in the basket, and the clean fluid passes through the basket and exits through the filter outlet. When cleaning is required, unscrew the screw plug at the bottom of the main pipe, drain the fluid, remove the flange cover, and refill it after cleaning. Therefore, it is extremely convenient to use and maintain.
