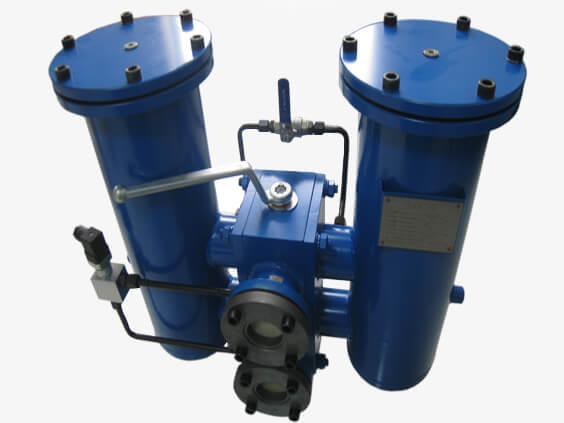

LQG160-630L/min series binocular lubricating oil filter

Model: LQG-0040-T1.6L630E1W80S1
Flow(L/min): 630
Filtration rate(μm): 80
working Press(MPa): 1.6
Filter media: Stainless steel
Description:

LQG160-630L/min series binocular lubricating oil filter consists of two monocular filters and a two-position six-way valve. The spool is made of stainless steel and the valve body is made of aluminum alloy,Simple structure, easy operation, according to customer requirements with filter components, in order to achieve the purpose of protecting the system security.

Specifications:
Model
LQG-0040-T1.6L630E1W80S1
Flow(L/min)

630

Filtration rate(μm)
80
Working Press(MPa)
1.6
Model of element
LXY(0254)
Feature:
When a filter element needs to be replaced, do not need to stop the host work, just open the pressure balance and turn the valve, another filter can participate in the work, and then replace the blocked filter
Options:
Model Flow(L/min) Filtration rate(μm) Press(MPa) Filter media Model of element
LQG-0046-T2.5L160E3W10S1 160 10 2.5 Stainless steel LXY(0259)
LQG-0045-T4L200E3W10S1 200 10 4 Stainless steel LXY(0258)
LQG-0047-T2.5L400E3W20S1 400 20 2.5 Stainless steel LXY(0243)
LQG-0039-T1.6L400E1W80S1 400 80 1.6 Stainless steel LXY(0253)
LQG-0040-T1.6L630E1W80S1 630 80 1.6 Stainless steel LXY(0254)
LQG-0040-T1.6L630E1W25S1 630 25 1.6 Stainless steel LXY(0254)
LQG-0040-T2.5L630E3W25S1 630 25 2.5 Stainless steel LXY(0254)
LQG-0059-T4L630E3W20S1 630 20 4 Stainless steel LXY(0254)
