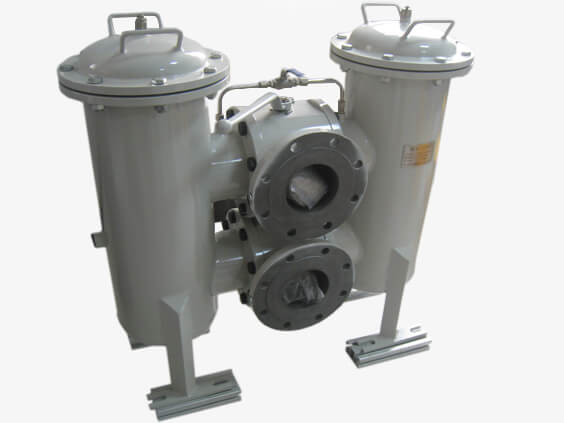

LQG-0034 Duplex Lubrication Filter

Model: DFLQG-0034
Flow(L/min): 2500
Filtration rate(μm): 100
working Press(MPa): 1.6
Weight(kg): 270
Description:

LQG-0034 duplex lubrication filter consists of two monocular filters and a two-position six-way valve. The spool is made of stainless steel and the valve body is made of aluminum alloy,Simple structure, easy operation, according to customer requirements with filter components, in order to achieve the purpose of protecting the system security.

Specifications:
Model
YPM660DFLQG-0034
Flow(L/min)

2500

Filtration rate(μm)
100
Working Press(MPa)
1.6
Weight(kg)
270
Application:
This filter is suitable for oil, mining, metallurgy, electric power, water conservancy engineering and other industries hydraulic lubrication system
Feature:
When a filter element needs to be replaced, do not need to stop the host work, just open the pressure balance and turn the valve, another filter can participate in the work, and then replace the blocked filter
