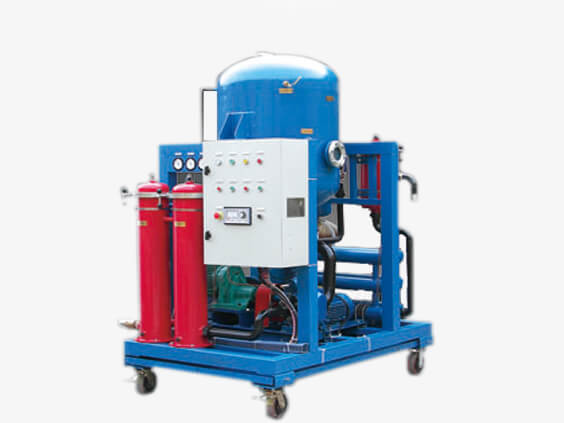

Precision Vacuum Oil Purifier ZLYC Series

Rated Voltage (MPa): 0.5
Pre-precision (micron) 100
Fine precision (micron) 3,5,10,20
Power(V) AC380
Filter replacement pressure difference(MPa) 0.2
Description:

For the protection of specific components in the hydraulic system, installed in the pressure line upstream element to be protected, in order to filter out the working medium of solid particles and colloidal substances, effective control of pollution of the working medium, and components to work properly. Hydraulic oil filter mainly stainless steel wire mesh, sintered wire mesh, iron preparation network, as a material, due to the media it uses are mainly glass fiber filter paper, synthetic paper, wood pulp paper, so it has concentric rate, to withstand pressure , straight is good, stainless steel, without any glitches, to ensure long life characteristics, its configuration is made of a single layer or multi-layer metal mesh and filter, use it in the specific number of layers constituting the screen the mesh according to different conditions and uses.

Specifications:
Type
Precision Vacuum Oil Purifier ZLYC Series
Rated Voltage(MPa)

0.6

Pre-precision (micron)
100
Fine precision (micron)
3,5,10,20
Power(V)
AC380
Filter replacement pressure difference(MPa)
0.2
Options:

Model No.

Rated Flow(L/min)

Motor Power (kw)

Weight(kg)

Dimensions (mm)

ZLYC-25

25

18

360

1250*920*1600

ZLYC-32

32

26

470

1350*980*1600

ZLYC-50

50

36

680

1500*1060*1800

ZLYC-100

100

65

840

1600*1080*2100

ZLYC-150

150

65

960

1800*1200*2200

ZLYC-200

200

135

1500

2000*1200*2200

Please note:
  • More information please contact: info@huahangfilter.com
