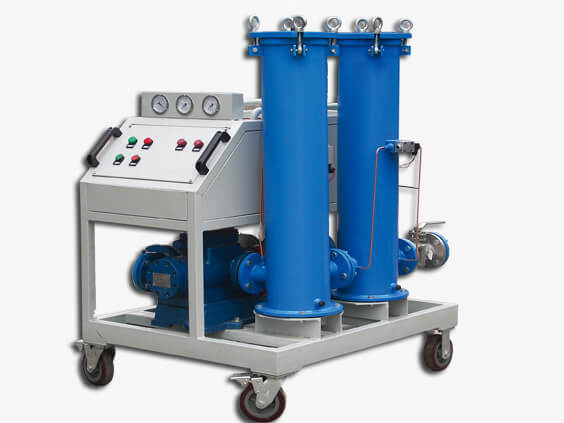

High Viscosity Mobile Transformer Oil Purifier GLYC Series

Rated Pressure (MPa): 1.0
Pressure Lost (MPa): <0.2
Pre-precision (micron): 100
Fine precision (micron): 3,5,10,20,40
Temperature (℃): 5-80
Description:

Bypass Valve – Allows transfer of oil without filtering.
Oil Sampling Ports – Two sampling ports available to monitor condition of oil.
Industrial Strength Tires – Wide tires capable of getting over large grate gaps.
Differential Pressure Gauges – Indicates when elements need to be changed.
Heavy Duty Cart – Rugged and built to last.
Drip Pan – Keeps work area safe and clean.

Specifications:
Rated Pressure (MPa)
1.0
Pressure Lost (MPa)

<0.2

Pre-precision (micron)
100
Fine precision (micron)
3,5,10,20,40
Temperature (℃)
5-80
Viscosity (cSt)
10-760
Power(V)
AC380
Options:
Model No. Description Rated Flow(L/min) Motor Power (kw) Weight(kg) Dimensions (mm)
GLYC-*25 High Viscosity Oil Purifier 25 1.1 160 1080 x 600 x 980
GLYC-*40 High Viscosity Oil Purifier 40 2.2 232 1200 x 600 x 980
GLYC-*50 High Viscosity Oil Purifier 50 3.0 240 1500 x 740 x 1020
GLYC-*63 High Viscosity Oil Purifier 63 3.0 265 1500 x 740 x 1020
GLYC-*100 High Viscosity Oil Purifier 100 4.0 400 1500 x 740 x 1020
GLYC-*160 High Viscosity Oil Purifier+ 160 5.5 540 1500 x 740 x 1020

Please Note:
1 *- Filtration Grade. A: First Filtration B: Second
2 All the weight and Dimensions are not very accurate. It is just for reference.
