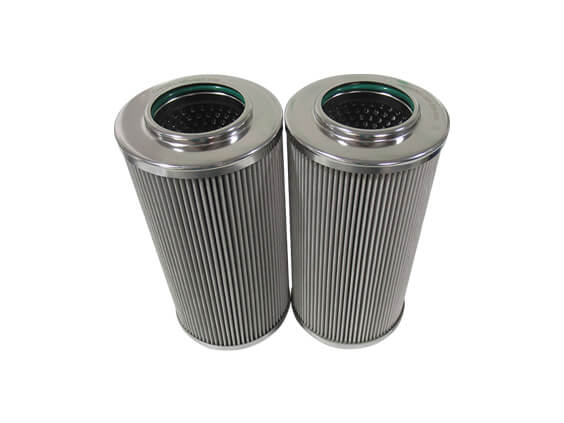

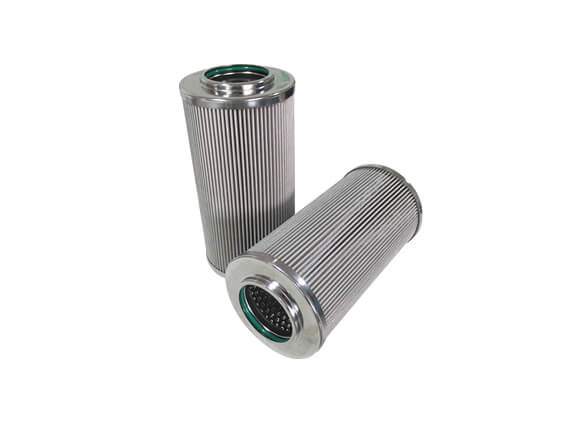

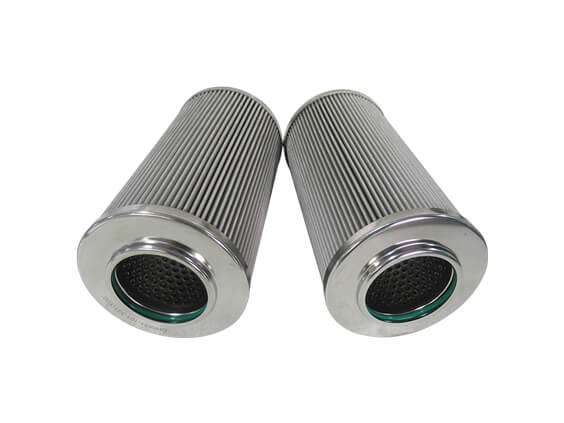

SS Wire Mesh Hydraulic Oil Filter CH0551-101-331-Y00

Type: SS Wire Mesh Hydraulic Oil Filter CH0551-101-331-Y00
Media: Stainless Steel
OD: 110mm
Length: 222mm
Filtration rate: 10μm
Description:

SS Wire Mesh Hydraulic Oil Filter CH0551-101-331-Y00, as its name suggests, is generally used in the hydraulic system or oil filter inside the filter, its role is to filter the impurities inside the hydraulic oil, to ensure the clean hydraulic oil and smooth operation of the hydraulic system.

Specifications:
Type SS Wire Mesh Hydraulic Oil Filter CH0551-101-331-Y00
OD 110mm
Length 222mm
Filtration rate 10μm
Media Stainless Steel
Features and Benefits:



Stainless steel oil filter sometimes filters the medium is not ordinary hydraulic oil, it will have certain corrosiveness or high working temperature. Therefore, glass fiber can not be used. Stainless steel metal mesh should be used, and the fiberglass material is relatively brittle. The filter material is not reusable after the filter element is clogged. It should be replaced in time. If it is made of stainless steel, it can be reused.



Application:
    Petrochemical, oil field pipeline filtration;
    Fuel filtration of fueling equipment and engineering machinery equipment;
    Equipment filtration in water treatment industry;
    Pharmaceutical and food processing fields;
    Can also be used for chemical liquid filtration.
    Suitable for pretreatment in the industrial sectors of electronics, petroleum, chemical, pharmaceutical, food, etc.
