  1. /d/pic/oil-filter-element/with-handle-hydraulic-oil-filter-element-1.jpg
  2. With handle Hydraulic Oil Filter Element
  3. With handle Hydraulic Oil Filter Element

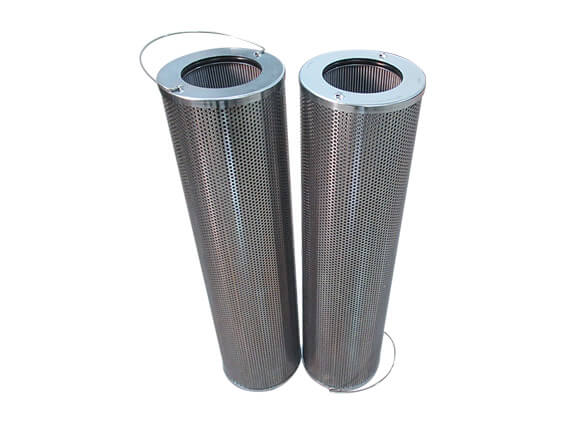

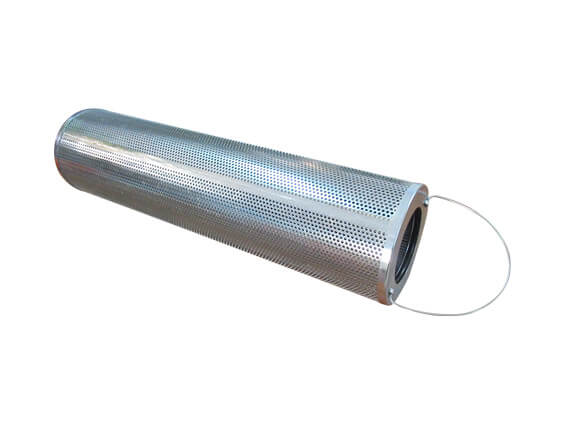

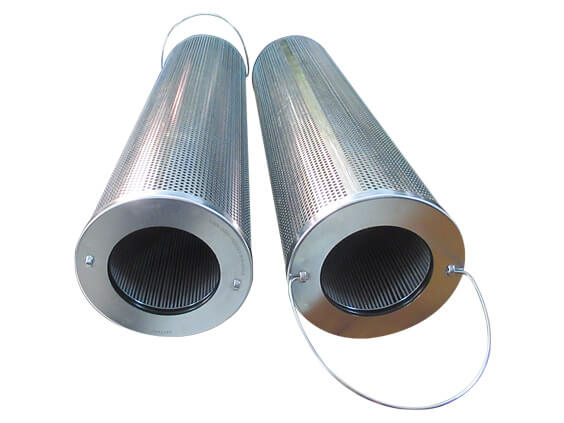

With handle Hydraulic Oil Filter Element

Type: With handle Hydraulic Oil Filter Element
Efficency: 10μm
Pressure: 3bar
Out Diameter:  152mm
Length: 584mm
Description:

With handle Hydraulic Oil Filter Element are for use in a wide range of applications and industries, suitable for use in both liquids and gases.All cartridges are manufactured from glassfiber throughout.

Specifications:
Product With handle Hydraulic Oil Filter Element
Efficency 10μm
Pressure 3bar
Out Diameter 152mm
Length 584mm
maintenance method:



1. Put off the original hydraulic oil before changing, check the oil return filter, oil absorption filter, pilot filter to see if there are iron filings or other impurities attached. If there are any hydraulic components failure, after cleaning, the cleaning system .

2. When changing hydraulic oil, all hydraulic oil filter elements (return oil filter, oil suction filter, pilot filter) must be replaced at the same time, otherwise it is equivalent to no change.

3, identify the hydraulic oil label, different grades, different brands of hydraulic oil are not mixed, may react to deterioration and produce flocs, it is recommended to use the excavator to specify oil.

4. Before the refueling, the oil-absorbing filter element must be installed first. The nozzle of the oil-absorbing filter core is directly connected to the main pump. When the impurities are light, the main pump is accelerated and the pump is pumped.

5, refueling to the standard position, the oil tank generally has an oil level gauge, look at the liquid level gauge. Pay attention to the parking mode. Generally, all the cylinders are fully retracted, that is, the arm and bucket are fully extended and landed.

6, after adding the oil, pay attention to the main pump to discharge air, otherwise the light will temporarily no action, the main pump is abnormal (air blast), and the air pocket damages the main pump. The air exhaust method is to loosen the pipe joint directly on the top of the main pump and fill it up directly.
