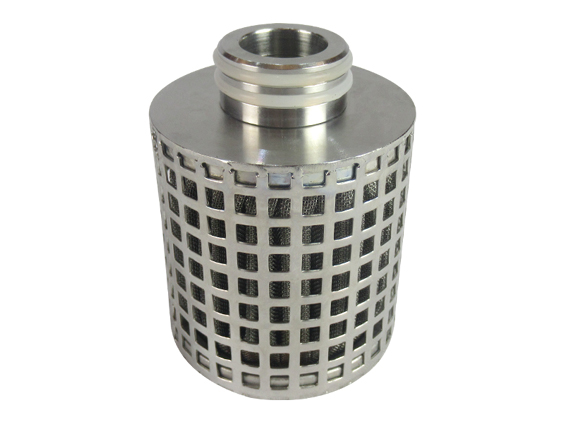

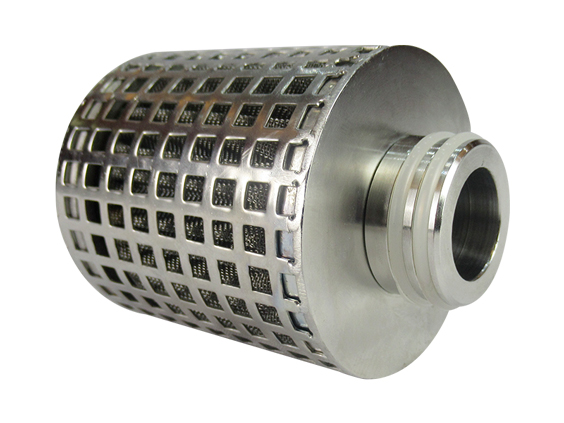

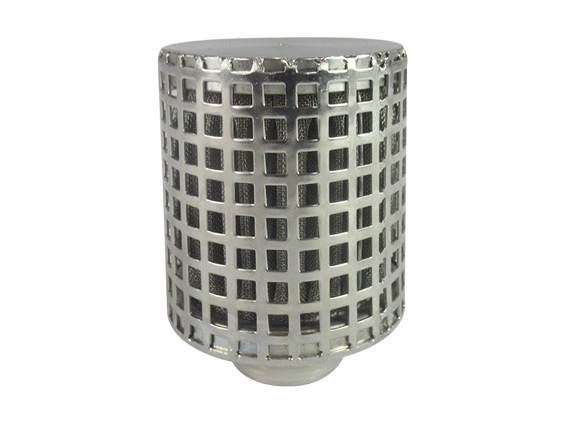

Polymer Candle Cartridge Filter

Type: Polymer Candle Cartridge Filter
Media: Stainless Steel
Filtration rate: 1-200um
OD: 67mm
Length: 87mm

Polymer Candle Filter is designed and developed to remove impurities such as gels and other solid infiltrates from polymer melt in chemical fiber, textiles and plastic industries.These filters are exposed to High Temperatures and Pressure. The strength and performance of the filter are very critical to the application as the complete process of producing fiber or yarn is dependent on these filters.

Type Polymer Candle Cartridge Filter
OD 67mm
Length 87mm
Media Stainless steel
Filtration rate 1-200um


Pleating is a folding wire process,The Pleated structure increases the filter’s filtration area, increases the dirt-holding capacity, and maintains low pressure in the machine.The pleating of wire mesh improves strength in the filtration mesh and support mesh which ultimately enhances the online working life of the filter and can be used multiple times before disposal.




Products are widely used in petroleum, chemical, chemical fiber, aviation, aerospace, nuclear industry, pharmaceuticals, metallurgy, electric power, water treatment, food and beverage, coal chemical industries and other industries.
