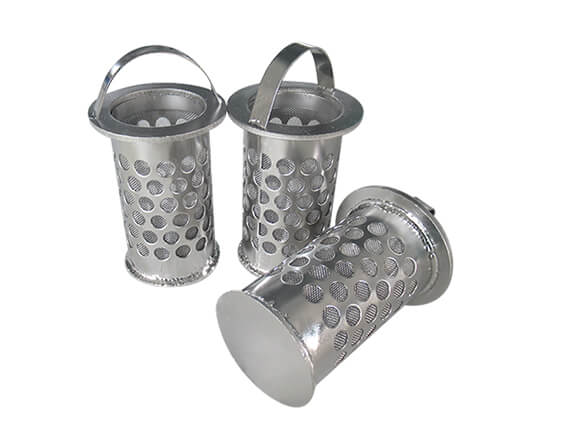

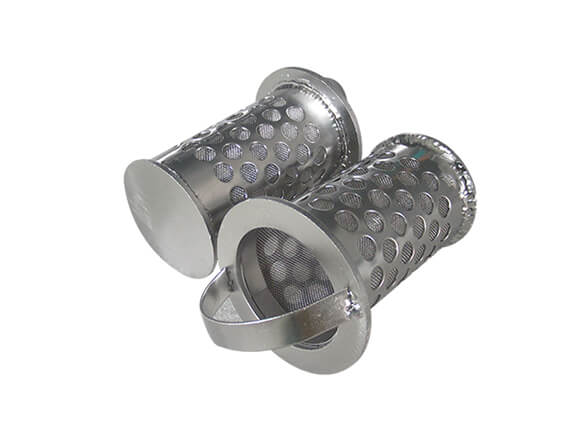

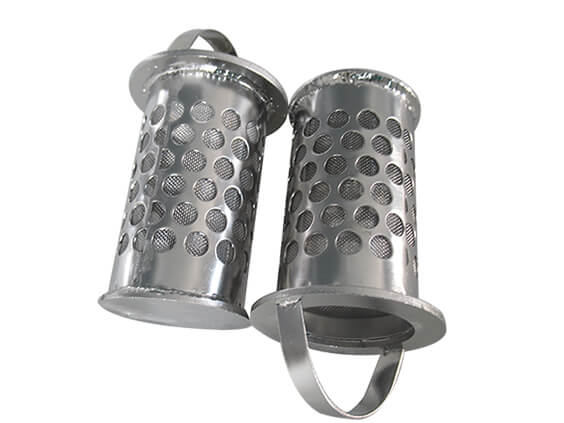

Stainless Steel Basket Filter

Type: Stainless Steel Basket Filter
Media: Stainless Steel
OD: Custom made
Length: Custom made
Custom made: yes
Application:

The stainless steel basket filter main filter material is made of stainless steel wire mesh and stainless steel punched mesh. The punching plate is used for support, and the strength and mechanical strength of the filter element are higher. The stainless steel basket filter has high temperature resistance, acid and alkali resistance, corrosion resistance, repetitive and clear use, convenient and affordable. Mainly used in food and beverage, water treatment, power plant dust removal, pharmaceutical, film and other industries. Can be processed into cylindrical, disc, and chip filters. The thickness of the perforated plate and the structure of the wire mesh can be customized according to user requirements. Dimensions and filtration accuracy are processed according to customer requirements.

Specifications:
Type Stainless Steel Basket Filter
custom made yes
Media Stainless Steel
Background technique:



The basket filter is used on oil or other liquid pipes to filter debris in the pipe. The basket filter is a small device that removes a small amount of solid particles from the liquid, protecting the normal operation of compressors, pumps, meters and other equipment. The basket filter is mainly composed of a nozzle, a main pipe, a filter drum, a flange, a flange cover and a fastener. When the liquid enters the filter drum through the main pipe, the solid foreign particles are blocked in the filter drum, and the clean fluid passes through the filter cartridge and is discharged from the filter outlet. When cleaning is required, unscrew the screw plug at the bottom of the main pipe, drain the fluid, remove the flange cover, and refill it after cleaning. The existing basket filter filter drum and the partition plate above the filter cartridge are integrated structures. When cleaning the filter cartridge, the filter cartridge and the separator plate need to be removed together, which is troublesome to disassemble and reduce work efficiency



Working principle:
    Water containing impurities flows into the inlet chamber from the water inlet, impurities are filtered and trapped in the filter element, and water without impurities flows into the water outlet chamber. When the outlet pressure gauge indicates that the pressure is less than the inlet pressure gauge, it indicates that there are more impurities in the inlet chamber. At this time, manual blowdown is required. By loosening the eyebolt on the blind cover, the blind cover is removed, the filter cartridge is rotated, and the boss is rotated. Rotate in the card slot to align the block and the bayonet, take out the filter cartridge, clean the drain, and open the bottom drain valve to clean the entire cavity.
