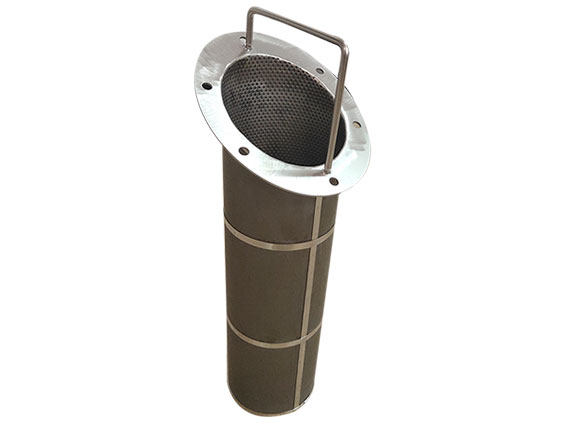

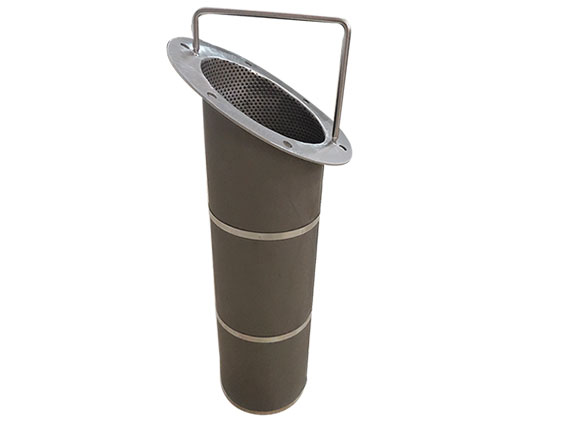

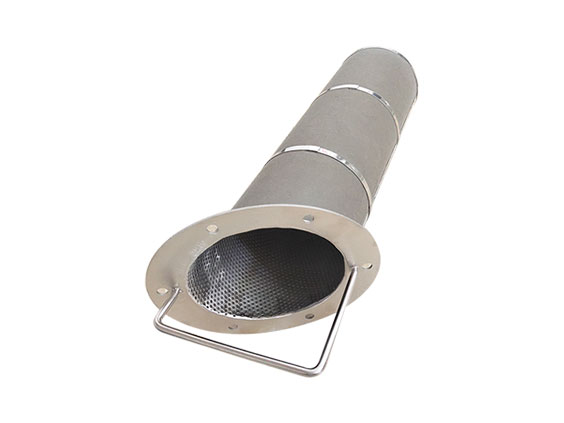

High Pressure Basket Filter

Type: High Pressure Basket Filter
Media: Sintered felt
OD: 350mm
Length: 500 mm
Custom made: yes
Application:

The basket filter is widely used in coarse filtration in large flow liquid pipelines, suitable for petrochemical, oilfield pipeline filtration; fueling equipment, engineering machinery equipment fuel filtration, water treatment industry equipment filtration, pharmaceutical and food processing.

Specifications:
Type High Pressure Basket Filter
OD 350mm
Length 500mm
custom made yes
Media Sintered felt
Features and Benefits:



The basket filter is easy to install and has a simple structure. The stainless steel basket filter element is easy to remove impurities after filtration. The power plant basket filter core will not cause secondary pollution system, and can be repeatedly used for cleaning and cost saving. It is made of single or multi-layer metal mesh by ultrasonic welding process. The weld seam is even and firm, and the product has high concentricity and high pressure.



Note:
    1. When the filter works for a period of time, certain impurities are precipitated in the filter core. At this time, the pressure drop increases, the flow rate will decrease, and the impurities in the filter core need to be removed in time;

    2. When cleaning impurities, pay special attention to the stainless steel wire mesh on the basket filter can not be deformed or damaged. Otherwise, The purity of the medium after filtration will not meet the design requirements, and the compressor, pump, instrument and other equipment will be damaged.
