UPVC Water Filter Housing,UPVC High Flow Water Filter Housing,Custom UPVC Water Filter

Description:

UPVC Filter housing has much larger filtering area and flow than other kinds of filter cartridge.The bilateral V-type rubber rings of the filter make it easy to change the cartridge,good sealing performance can effectly avoid leak.

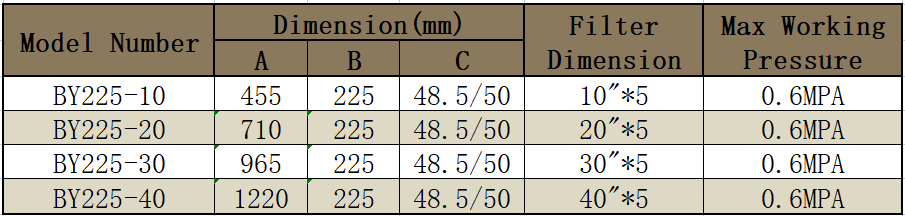

Specifications:

Type	UPVC Precision Water Filter Housing
Filter Element Type	High Flow Filter Element
Filter Dimension	10"x5,20"x5,30"x5,40"x5
Max Working Pressure	0.6 Mpa
Origin	Henan,China
Package	Carton

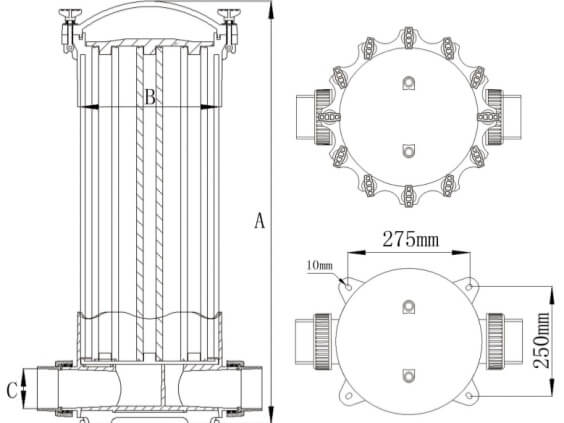

Filter Drawing:

Feature：

1. UPVC material has stronger corrosion resistance, Can be widely used in food, industry acid base salt solution, cooling tower circulating filtration and ultrafiltration membrane which stainless steel can not be replaced

2. The water will be evenly distributed from bottom to top,small strike to cartridges, exhaust valve on the top of the filter in order to discharge the air from the filter.

3, The highest working temperature is 45 C, The size of the two holes in the lid of the filter is G1/4" , If the thread of the pressure gauage is metric standard, an adaptor should be added.

4.Unlike the triditional assembling,The filter has PP cotton filter positioning so that the cartridge no need to be adjusted afterlid
