Description:

Multi Bag Filter Housing aims to provide efficient and cost-effective solutions for liquid filtration in various industrial applications. This casing can accommodate multiple filter bags, thereby improving filtration capacity and extending service life.

Specifications:

Part number	Quantity of Filter Bags	Size	Flow rate (m³/h)	Max. Working pressure (bar)	Max. Working temperature (℃)	Interface of inlet and outlet
EMBF-0302	3	02	80	10	120	DN80 PN16(DIN Flange)
EMBF-0402	4	02	160	10	120	DN100 PN16(DIN Flange)
EMBF-0602	6	02	240	10	120	DN150 PN16(DIN Flange)
EMBF-0802	8	02	320	10	120	DN200 PN16(DIN Flange)
EMBF-1202	12	02	480	10	120	DN250 PN16(DIN Flange)

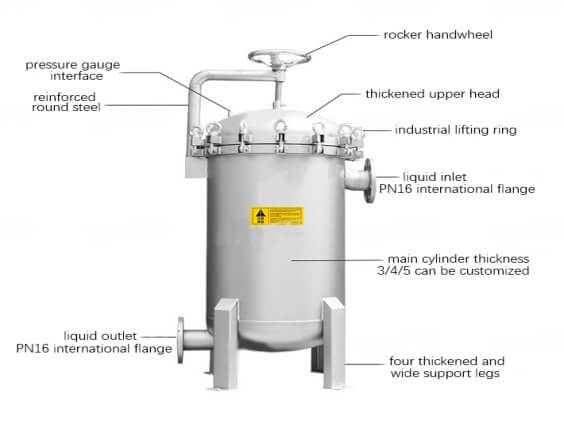

Filter Structure:

Feature：

1. Side entry and bottom exit, the filter media is discharged straight down, and the sewage is discharged more thoroughly;

2. Multi-bag design with 2-12 bags is available to meet the filtration needs of large flow rates

3. Tighten the top cover bolts to ensure complete sealing;

4. Stainless steel material that meets CE certification, has strong chemical applicability and strong pressure resistance
