Single Bag Filter Housing,Bag Water Filter, Bag Filter Housing

Description:

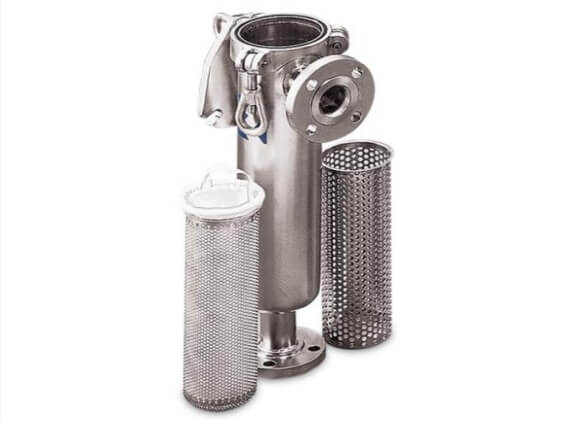

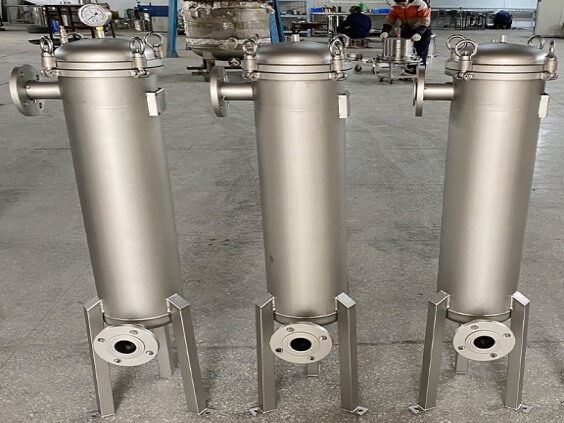

Our single bag filter housing features a compact design that is easy to install and maintain, making it an ideal choice for facilities with limited space or maintenance resources. Our filter housing is equipped with a heavy-duty lid closure system to ensure safe sealing, prevent leakage, and ensure efficient filtration.

Specifications:

Part number	Quantity of Filter Bags	Size	Flow rate (m³/h)	Max. Working pressure (bar)	Max. Working temperature (℃)	Interface of inlet and outlet
EBF-0101	1	01	20	6	90	2" BSP female thread
EBF-0102	1	02	40	6	90	2" BSP female thread
EBF-0103	1	03	6	6	90	1.5" BSP female thread
EBF-0104	1	04	12	6	90	1.5" BSP female thread

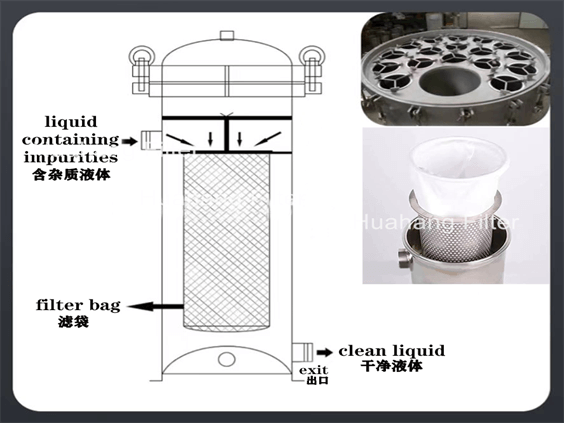

Filter Structure:

Feature：

1. Simple structure, lightweight and easy to clean

2. Cylinder groove design

3. Integrated filter bag support structure

4. Enter from the side and exit from the bottom
