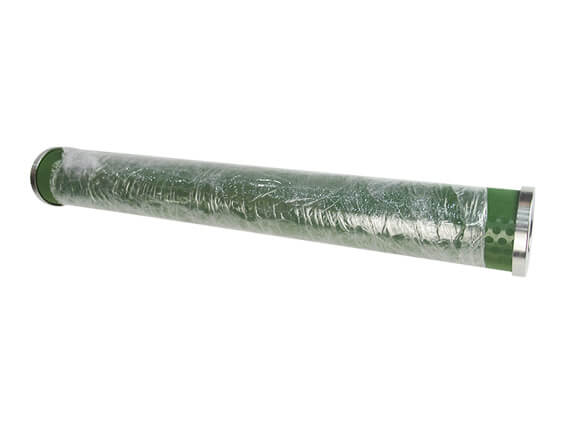

Separate Filter 60644565d

Type: Separate Filter
End Cover: 316L
Skeleton: 304 Punched plate
Outer Filtering Layer: PTFE
Part Number: 60644565d


Separation filter is processed by a varity of composite by a special process,with hydrophilic properities.It can not only filter medium mechanical inpurities,but also by breaking,coalescing,so that water from the emulsified state separating the medium and larger droplets coalesce ,to further facilitate the purification of the filter medium is achieved.


Product Separate Filter
End Cover 316L
Skeleton 304 Punched plate
Outer Filtering Layer PTFE
Part Number 60644565d



Solid-liquid, gas-solid, gas-liquid separation and purification in fields such as petroleum, chemical industry, metallurgy, aviation, electronics, power, pharmaceuticals, environmental protection, atomic energy, nuclear industry, natural gas, refractory materials, firefighting equipment, etc.




1. The filtration effect of the particle suspension in the gas reaches 99%
2. It is recommended to replace the differential pressure: when the temperature reaches 135 degrees Celsius, the replacement pressure difference is 4.1 bar.
3. High filtration area, up to 54 square feet, long service life
4. Filtration accuracy can reach 0.5-40 microns
