Your position:
Home > PRODUCTS > Coalescer and Separator > Filter Separator
  1. /d/pic/coalescer-and-separator/gasliquid-filter-01.jpg

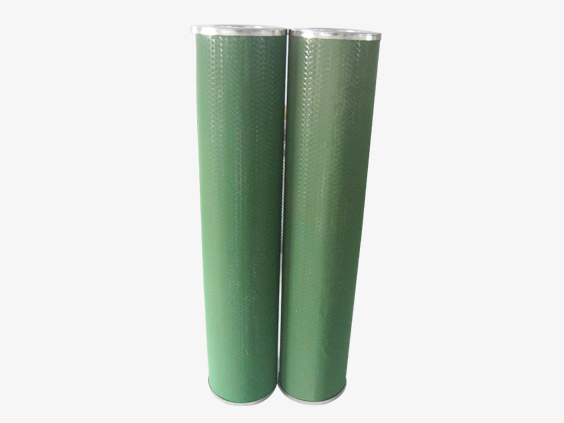

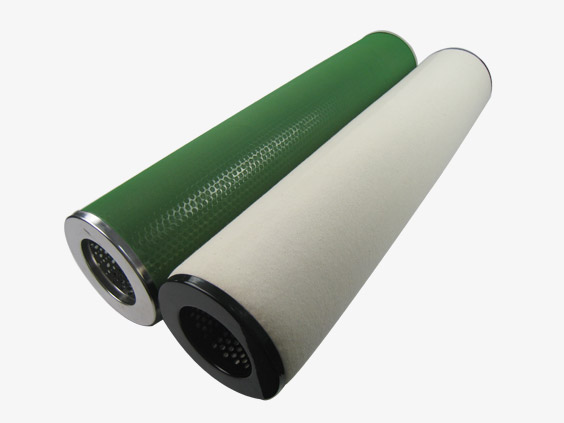

  2. Gas/Liquid Filter Separator Element

Gas/Liquid Filter Separator Element

Outer diameter: 3.5 inches, 4.5 inches, 6 inches
Length: 18, 20, 32, 36, 40, 72, 16 inches
Filter skeleton material: stainless steel and other materials
Core: Stainless steel / PP
End Caps: PP / Stainless steel / Galvanized
Description:

Gas/Liquid Filter Separator Element remove the impurity, coalescence water moisture, which is an important feature of fine filter.

There are two filter elements in one group for Coalescer-separator filter:

Coalescer filter element—mainly congregate the water molecule to make it to a liquid water.

Separator Filter element—separate the liquid water from the oil. Liquid water will be expelled.

Specifications:

Outer diameter: 3.5 inches, 4.5 inches, 6 inches;
Length: 18, 20, 32, 36, 40, 72, 16 inches
Filter skeleton material: stainless steel and other materials
Core: Stainless steel / PP
End Caps: PP / Stainless steel / Galvanized
Micron: 1-200 micron
The initial pressure difference: 0.4 psig or less
Replace the differential pressure: < 0.6 psig
Operating temperature: 0 ~ 120 °C

FAQ:

Q: Are you trading company or manufacturer?
A: We are manufacture and we have our own factory


Q: How long is your delivery time?
A: Generally it is 2-5days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, it is according to quantity.


Q: Do you provide samples?
A: Yes, we could offer the sample.


Q: What is your terms of MOQ
A: There is no strict requirements.1pc of sample is OK.


If you do not find what you need in the part number list, please give us a call at 0086-373-5471699 or mail to: info@huahangfilter.com
