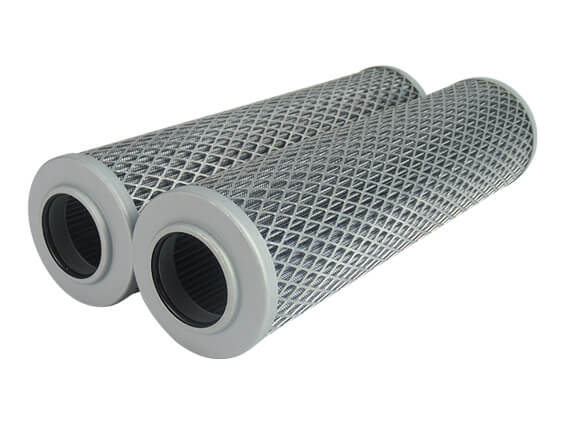

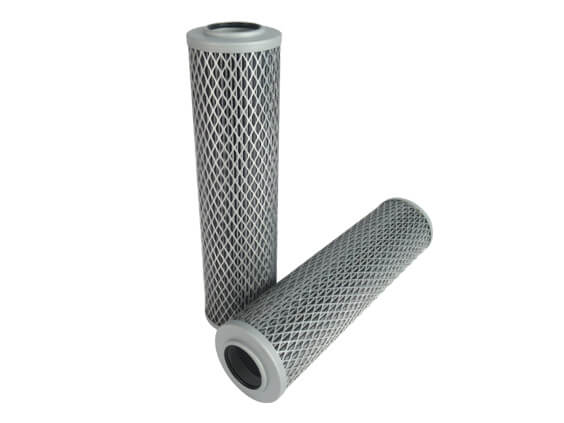

Customized Supply Oil Separator Filter

Type: Huahang Supply Oil Separator Filter
Dimension: 41*43*304
Skeleton: Zinc infiltrated galvanized mesh
Filtering Layer: Composite parts
Sealing Ring: NBR


The oil separator filter element is mainly designed for oil-water separation, and it contains two types of filter elements, namely, a polymer filter element and a separation filter element. For example, in a water removal system for oil products, after the oil enters the coalescence separator, it first flows through the coalescence filter element, which filters out solid impurities and aggregates small water droplets into larger water droplets. The vast majority of aggregated water droplets can be separated and removed from the oil by their own weight, and settle into the collection tank.


Product Huahang Supply Oil Separator Filter
End Cover Carbon steel
Skeleton Zinc infiltrated galvanized mesh
Filtering Layer Composite parts
Sealing Ring NBR



Metallurgy, petrochemicals, textiles, electronics, pharmaceuticals, thermal power, nuclear power, mechanical processing equipment, railway internal combustion engines and generators, automotive engines and engineering machinery, etc. It can filter lubricating equipment, oilfield injection water and natural gas particle removal filtration, textiles, deionized water, ethanol, etc.




1. The filtration effect of the particle suspension in the gas reaches 99%
2. It is recommended to replace the differential pressure: when the temperature reaches 135 degrees Celsius, the replacement pressure difference is 4.1 bar.
3. High filtration area, up to 54 square feet, long service life
4. Filtration accuracy can reach 0.5-40 microns
