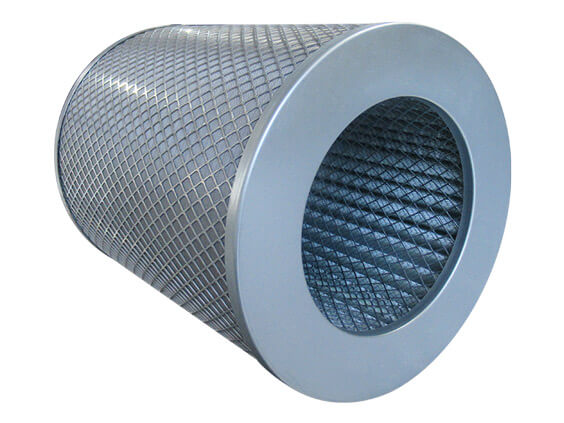

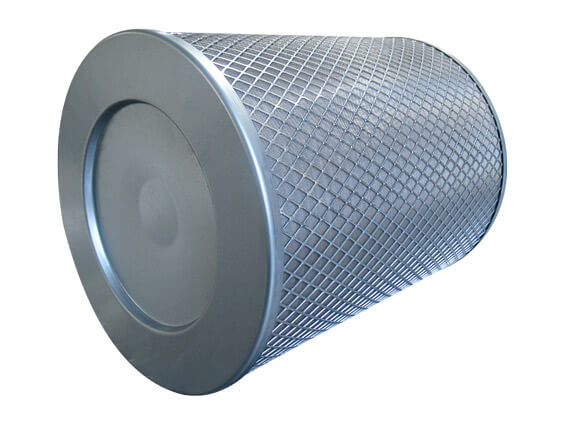

Oil Separator Filter 300x366

Type: Oil separate filter element
Dimension: 190x300x366
End caps: Carbon Steel
Inner & Outer Skeleton: Zinc infiltrated diamond mesh
Filter layer: Composite parts


This oil mist separation filter is made from premium quality materials and is designed using advanced technology to ensure it meets the strictest quality standards. The filter features a durable construction that can withstand high pressure and high-temperature operations without degrading or deteriorating.


Product Oil Separate Filter Element
End caps Carbon steel
Inner & Outer skeleton Zinc infiltrated diamond mesh
Filter layer Composite parts



Metallurgy, petrochemicals, textiles, electronics, pharmaceuticals, thermal power, nuclear power, mechanical processing equipment, railway internal combustion engines and generators, automotive engines and engineering machinery, etc. It can filter lubricating equipment, oilfield injection water and natural gas particle removal filtration, textiles, deionized water, ethanol, etc.




1. The filtration effect of the particle suspension in the gas reaches 99%
2. It is recommended to replace the differential pressure: when the temperature reaches 135 degrees Celsius, the replacement pressure difference is 4.1 bar.
3. High filtration area, up to 54 square feet, long service life
4. Filtration accuracy can reach 0.5-40 microns
