  1. /d/pic/coalescer-and-separator/liquidliquid-01.jpg

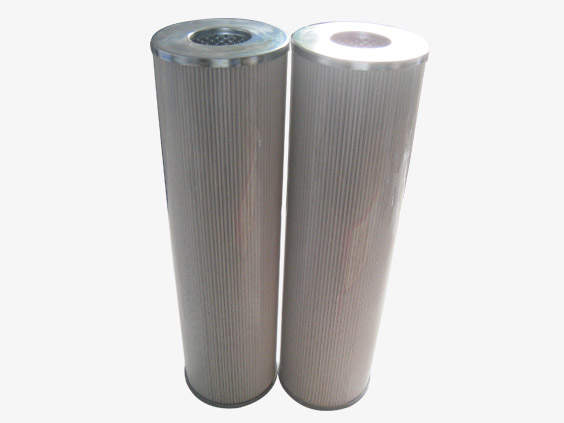

Liquid/Liquid Separator Filter Cartridge

Outer diameter: 3.5 inches, 4.5 inches, 6 inches;
Length: 18, 20, 32, 36, 40, 72,  16 inches
Filter skeleton material: stainless steel and other materials
Core: Stainless steel / PP
End Caps: PP / Stainless steel / Galvanized

There are two filter elements in one group for Coalescer-Separator filter: Coalescer filter element: mainly congregate the water molecule to make it to a liquid water.

Separator Filter element: separate the liquid water from the oil. Liquid water will be expelled.

Coalesce-separator Filter Element: Removing impurities & water deeply

Fuel Water Separator Filter is processed by a special process by a variety of composite materials with hydrophilic characteristics, it can not only filter out mechanical impurities in the media, but also by coalescence, so from the media in the emulsified state's water separated, and the larger droplets coalesce to facilitate the further purification of the medium.


Outer diameter: 3.5 inches, 4.5 inches, 6 inches;
Length: 18, 20, 32, 36, 40, 72,  16 inches
Filter skeleton material: stainless steel and other materials
Core: Stainless steel / PP
End Caps: PP / Stainless steel / Galvanized
Micron: 1-200 micron

Features and Benefits:

1 Large filter surfaces.
2 Low pressure drop.
3 High dirt-holding capacities.
4 Long service life.
5 Durable and reliable.

Main Products:

Replacement Filters
Air filter
Water filter
Pressure line filter
Basket filter & Strainer
Filter separators
Return line filters
Tank mounted filter/Suction filter
Portable Filtration


Please feel free to submit your inquiry information to us. We will contact with you as soon as possible.
