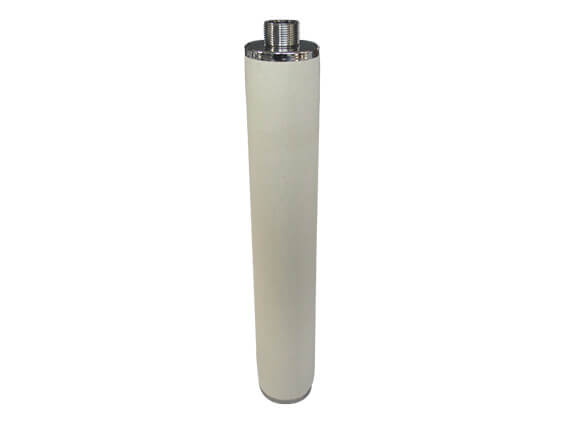

  1. /d/pic/coalescer-and-separator/oil-water-coalescer-filter-cartridge-(2).jpg
  2. Oil Water Coalescer Filter Cartridge
  3. Oil Water Coalescer Filter Cartridge

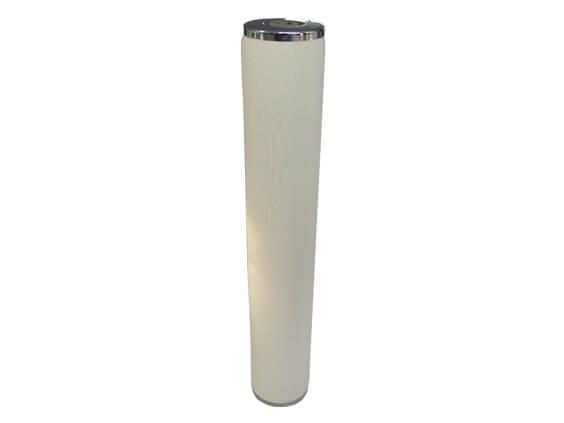

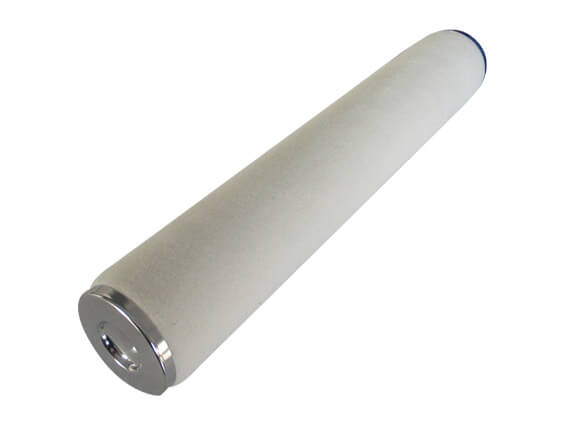

Oil Water Coalescer Filter Cartridge

Product: Oil Water Coalescer Filter Cartridge
Media: Glass fiber
End caps: 304 Stainless Steel
Out Diameter: 70mm
Length: 450mm

The Oil Water Coalescer Filter Cartridge has multiple layers of filter media, the pore size of which increases gradually. Due to the difference in surface tension, the oil quickly passes through the filter layer, while the water is much slower; and because the coalescing filter element uses hydrophilic materials, tiny water droplets are adsorbed on the surface of the filter layer and cause water droplets to coalesce. Affected by kinetic energy, small droplets race through the openings, gradually converge into large droplets, and settle under the action of gravity to separate from the oil.

Product Oil Water Coalescer Filter Cartridge
Type Cartridge
Media Glass fiber
End caps 304 Stainless Steel
Out Diameter 70mm
Length 450mm
Max Temperature 110℃
High filtration accuracy,

stable structure

no pollution to the environment and downstream products,

good compatibility with various fluids



Aviation fuel, gasoline, kerosene, diesel;
Liquefied petroleum gas, stone tar, benzene, toluene, xylene, cumene, polypropylene, etc.;
Steam turbine oil and other low viscosity hydraulic oils and lubricants;
Cycloethane, isopropanol, cycloethanol, cycloethanone, etc.;
Other hydrocarbon compounds
