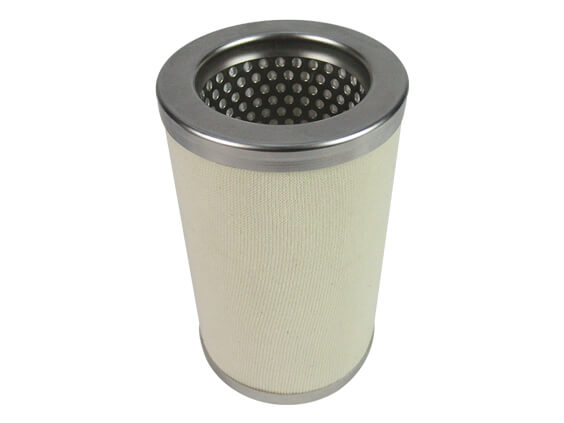

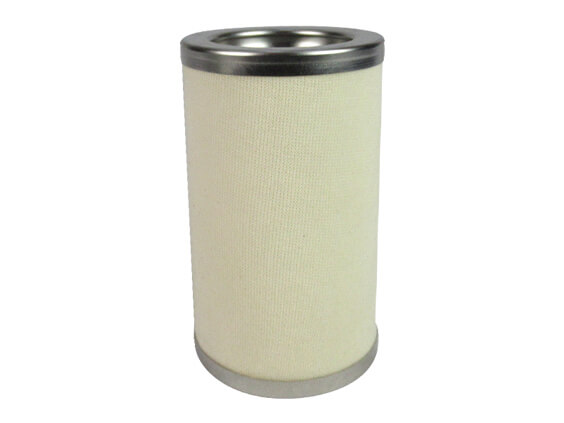

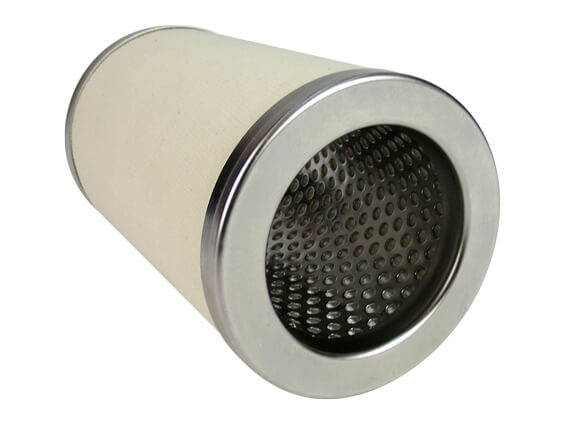

Cylindrical Coalescer Filter Element 90x154

Product: Cylindrical Coalescer Filter Element
Media: Glassfiber
End caps: Galvanized
Out Diameter: 90mm
Length: 154mm

The Cylindrical Coalescer Filter Element two stage filter separator technology allows you to have the smallest possible vessel diameter, resulting in the lowest cost, while removing aerosol liquids and solid particles efficiently.

Product Cylindrical Coalescer Filter Element
Type Cartridge
Media Glassfiber
End caps Galvanized
Out Diameter 90mm
Length 154mm
Max Temperature 110℃
Removes aerosol mist to protect downstream equipment from damage, fouling, pitting corrosion or deactivation of catalyst of molecular sieves
Reduces amine or glycol foaming problems by removing inlet solids and free liquid particles
Allows low cost vessel designs



Aviation fuel, gasoline, kerosene, diesel;
Liquefied petroleum gas, stone tar, benzene, toluene, xylene, cumene, polypropylene, etc.;
Steam turbine oil and other low viscosity hydraulic oils and lubricants;
Cycloethane, isopropanol, cycloethanol, cycloethanone, etc.;
Other hydrocarbon compounds
