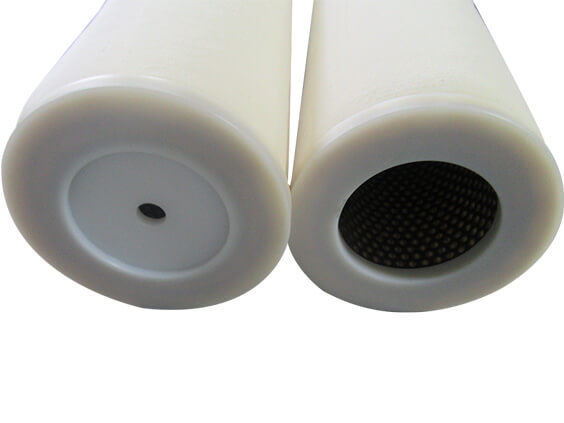

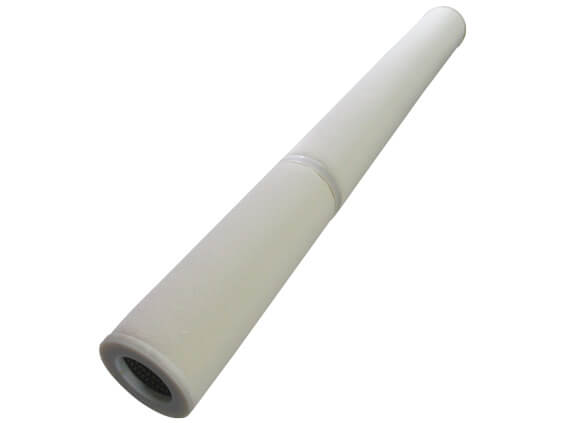

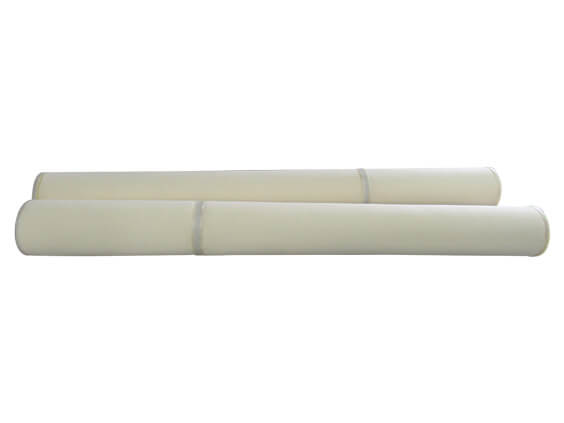

Custom Made Coalescer Filter Cartridge

Type: Custom Made Coalescer Filter Cartridge
Media: Fiberglass
End caps: Nylon
Out Diameter: 152mm
Length: 1450mm
Description:

Custom Made Coalescer Filter Cartridge is processed by a variety of composite materials by a special process,with hydrophilic properties.it can not only filter medium nechanical impurities,but also by breaking,coalescing,so that water from the emulsified state separating the medium and large droplets coalesce,to further facilitate the purification of the filter medium is achieved.

Specifications:
Product Custom Made Coalescer Filter Cartridge
Type Cartridge
Media Fiberglass
End caps Nylon
Out Diameter 152mm
Length 1450mm
Max Temperature 80℃
Advantages:



High density gradient
Efficient filtration precision
Stable structure
There is no medium of fibers, won't cause pollution to environment, downstream products



Application:

 Aviation fuel, gasoline, kerosene, diesel;
Liquefied petroleum gas, stone tar, benzene, toluene, xylene, cumene, polypropylene, etc.;
Turbine oil and other low viscosity hydraulic oils and lubricating oils;
Cyclohexane, isopropanol, cycloethanol, cyclohexanone, etc.;
Other hydrocarbon hydrocarbon compounds
