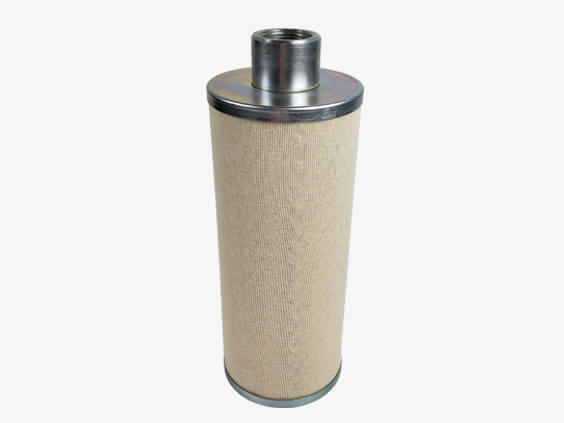

  1. /d/pic/coalescer-filter-element-(3).jpg

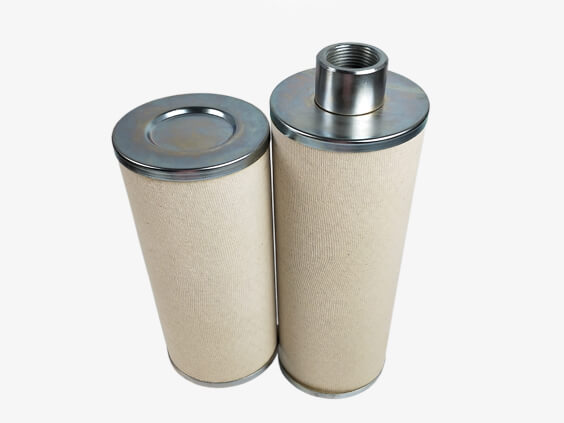

  2. Coalescing Filter Element

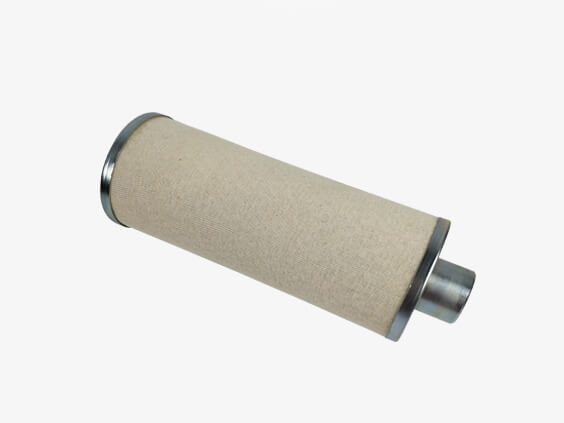

  3. Coalescing Filter Element

Coalescing Filter Element

Type: Cartridge
Media: Fiberglass
End caps: Galvanized
Out Diameter: 102mm
Length: 250mm
Description:

Coalescer filter is often called a pre-filter because it is usually located prior to an air dryer to prevent oil and particulate from soiling the desiccant. In the area of compressed air purification, coalescing filters are used to separate liquid water and oil from compressed air using a coalescing effect. These filters additionally remove particles.

Specifications:
Product Coalescing Filter
Type Cartridge
Media Fiberglass
End caps Galvanized
Out Diameter 102mm
Length 250mm
Micron 10
Max Temperature 80℃
How to work:
The fibers of the middle layer capture the fine liquid droplets suspended in the gas and cause the droplets to run together and form large droplets with the depth of the filter. These large droplets emerge on the outer surface of the coalescer and drain by gravity to the lower collection chamber. The clean gas passes from the coalescer elements and exits through the vessel outlet





Please note:
  • All items marked Replacement or Equivalent are not affiliated with the original equipment manufacturer, part numbers are to reference
  • More information about replacement HYDAC filter please contact: info@huahangfilter.com
