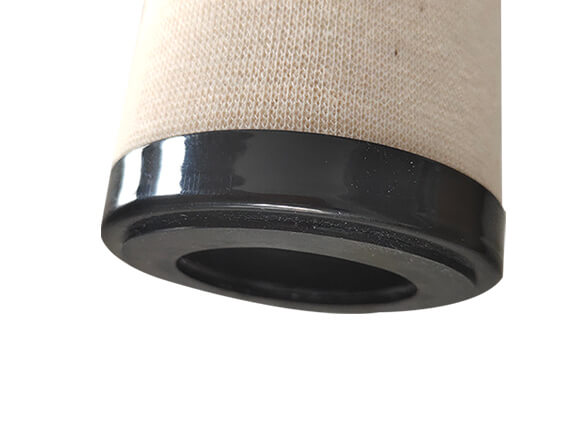

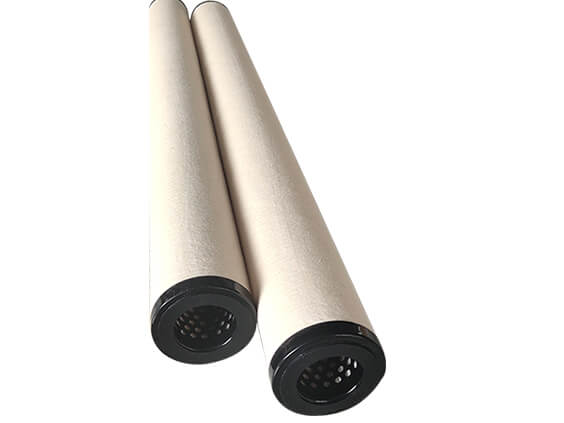

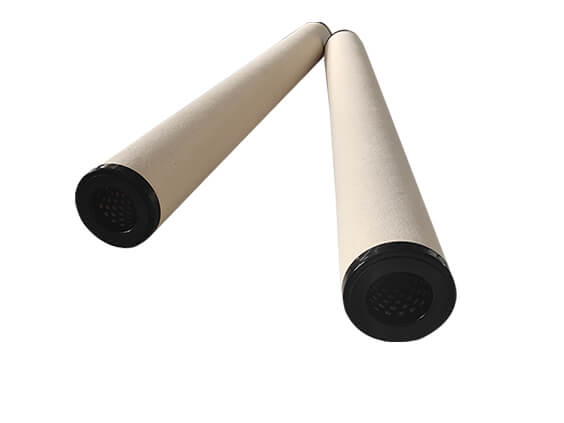

3μm Coalescing Filter Element

Type: Cartridge
Media: Fiberglass
End caps: Galvanized
Out Diameter: 70mm
Length: 774mm
Description:

3μm Coalescing Filter Element is processed by a variety of composite materials by a special process,with hydrophilic properties.it can not only filter medium nechanical impurities,but also by breaking,coalescing,so that water from the emulsified state separating the medium and large droplets coalesce,to further facilitate the purification of the filter medium is achieved.

Specifications:
Product 3μm Coalescing Filter Element
Type Cartridge
Media Fiberglass
End caps Galvanized
Out Diameter 70mm
Length 774mm
Micron 3
Max Temperature 80℃
Advantages:



high density gradient, coalescence and fog droplet in gas, efficient filtration precision is high. Stable structure, there is no medium of fibers, won't cause pollution to environment, downstream products.



Please note:
  • All items marked Replacement or Equivalent are not affiliated with the original equipment manufacturer, part numbers are to reference
  • More information about fuel gas coalescing filter please contact: info@huahangfilter.com
