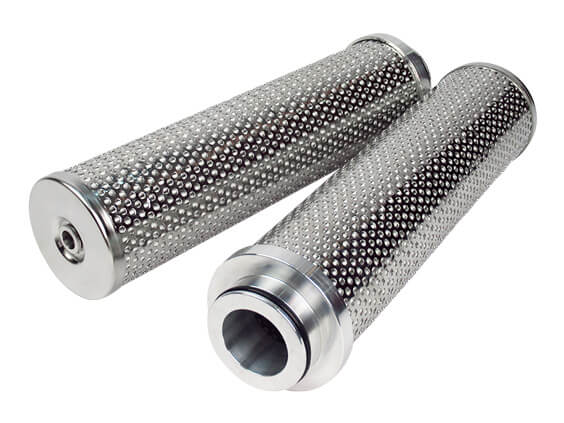

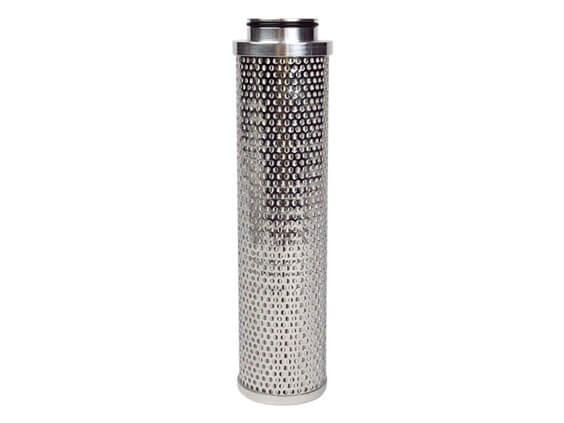

Paper Air Filter With Lined Mesh 68x263

Type: Dust Collect Air Filter Cartridge
OD: 68
Height: 263
End caps: Aluminum,304
Filter layer: Filter paper with lined mesh
Description:

This air filter has a compact size of 68x263 and is suitable for various industrial and commercial environments, including HVAC systems, air compressors, generators, and more. Quick and easy installation is a convenient and cost-effective solution for maintaining optimal air quality.

Specifications:
Type Dust Removal Air Filter Cartridge
Dimension 68x263
End caps Aluminum,304
Filter layer Filter paper with lined mesh
Filtration efficiency 99.99%
Custom made Avaliable
Video:















Features:

Filtering performance: The main function of the lined filter paper air filter is to filter impurities in the air, such as dust, carbon particles, water vapor, and other small particles, to ensure that the air entering the engine is clean. Its filtration efficiency can reach over 99%, with high filtration capacity.

Durability and maintenance: This type of filter is usually made of high-quality filter paper and metal mesh, which has strong durability. Its sealing performance is good, which can prevent air leakage and impurities from entering. Easy to maintain, when the filter element is clogged or damaged, it can be easily removed for cleaning or replacement.

Structure and Material: There are various structural designs for lined filter paper air filters, including paper filter air filters, centrifugal air filters, and oil bath air filters. The material of its filter element is usually microporous filter paper treated with resin, which has excellent filtration performance and durability. In addition, the filter element is often protected by a porous metal mesh on the outside to prevent damage to the filter paper during transportation and storage.

Environmental protection and energy conservation: By filtering impurities in the air and reducing pollutants entering the engine, engine emissions can be lowered, which helps to reduce air pollution and protect the environment. After clean air enters the engine, it can burn more fully, improve the fuel efficiency of the engine, reduce fuel consumption, and decrease carbon emissions
