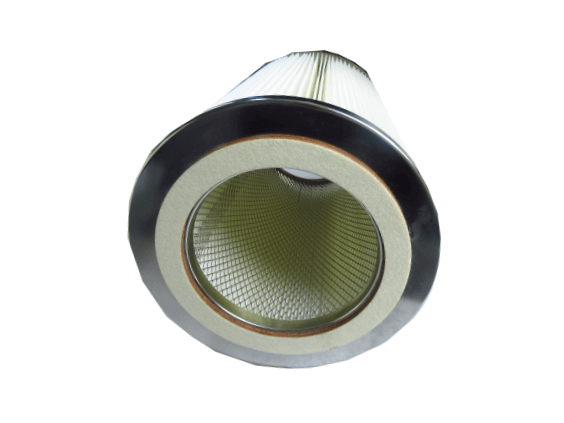

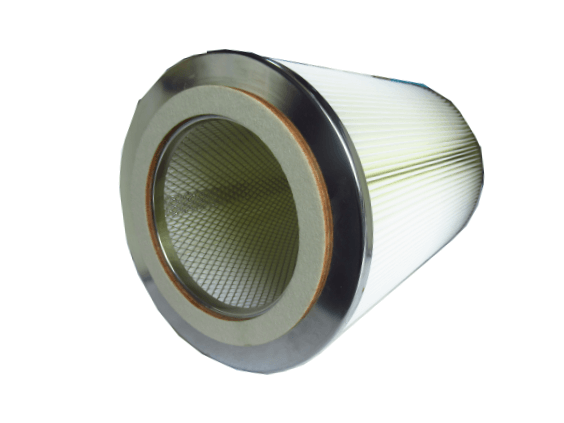

HHKL25C25 Air Filter Element

Type: Custom air filter element
Part number: HHKL25C25
End caps: White silicone
Inner skeleton: 304 diamond mesh
Filter layer: Laminated polyester fabric
Description:

The HHKL25C25 air filter is designed for ease of use and is easy to install without the need for additional tools or equipment. Simply replace your current filter element with this high-quality product and immediately improve the air quality of your machine. Its sturdy structure ensures wear resistance, providing long-lasting reliability and performance.

Specifications:
Type Custom Air Filter Cartridge
Part number HHKL25C25
Inner skeleton 304 diamond mesh
Filter layer Laminated polyester fabric
Filtration efficiency 99.9%
Cleaning Method:

1. Gently tap the filter element to shake off some of the dust.
2. Use compressed air to blow from the inside out to remove dust.
3. If the filter paper is already dusty or wet with oil, water, etc., it should be replaced with a new filter paper in a timely manner.
4. For sponge foam wet filter element, clean water and nonflammable detergent can be used to clean the stains, but do not use gasoline or other detergents to avoid affecting the filtering effect of the filter element. After cleaning, a small amount of cleaning oil should be applied to the intake side of the filter element to maintain its normal working condition.














Replace method:

    1. Open the engine hood and confirm the position of the air filter. The air filter is usually located in the engine compartment, connected to the intake pipe and one end connected to the engine. A square plastic black box can be seen, and the air filter element is installed inside.
    2. Remove the upper cover of the air filter. The plastic box of the air filter is fixed with clips. Gently pry up the two metal clips or use a screwdriver to unscrew the screws, lift the entire upper cover of the air filter, and you can take out the air filter.
    3. Check and clean or replace the air filter element. After removing the air filter, check for excessive dust. You can gently tap the end face of the filter element or use compressed air to clean the dust on the filter element from the inside out. If the air filter has become black and blocked, a new filter needs to be replaced.
    4. Install a new air filter. Before installing the new air filter, thoroughly clean the bottom of the air filter box to remove any dust and dirt underneath the air filter. Install the new air filter, secure it, fasten the cover of the air filter box, install the clip as it is, and ensure that the installed air filter box is tightly sealed.
    5. Test the engine. After installation, try the engine and confirm that it is installed properly before lowering the engine hood.
    Attention: When replacing the air filter element, it is recommended to choose original factory accessories to ensure the quality and performance of the filter element. If you are not familiar with car maintenance, it is recommended to seek professional assistance in replacement.
