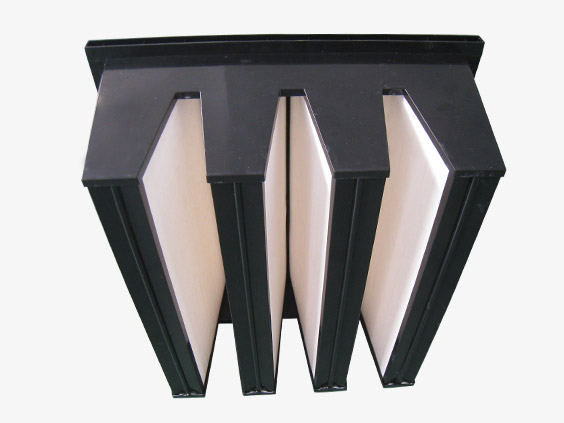

  1. /d/pic/air-filter/f7-pocket-air-01.jpg
  2. F7 Pocket Air Filter Element
  3. F7 Pocket Air Filter Element

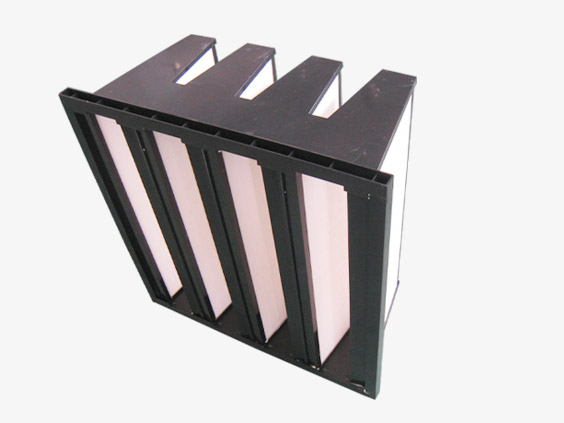

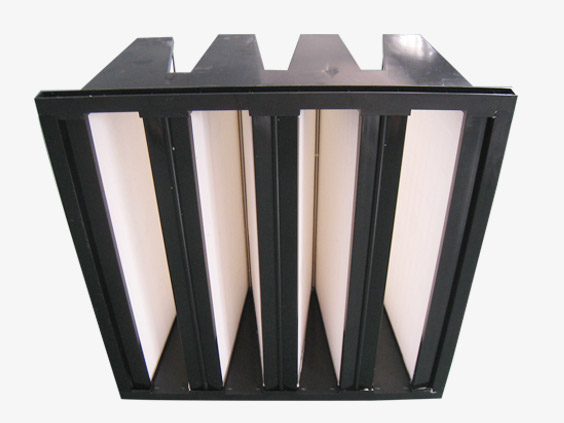

F7 Pocket Air Filter Element

Efficiency: F7
Media: Chemical Fiber / Glass Fiber
Frame: Plastic / Galvanized Steel
Pocket Number: 2/3/4/5/6/7/8
Certificate: ISO&CE
Description:

The Pocket Air Filter provides resistance high dust holding capacities at an economic price whilst achieving an efficiency of 95% to 5 micron. Each pocket is constructed of dual stage media. This dual stage three ply configuration increases overall efficiency and dust holding capacity.These bag filters can be used either as an air filter in its own right or as a Pre-filtration giving protection to higher grade filters.

Specifications:
Product Pocket Air Filter
Efficiency F7
Media Chemical Fiber / Glass Fiber
Frame Plastic / Galvanized Steel
Pocket Number 2/3/4/5/6/7/8
Certification CE&ISO
Application:

The Pocket filter is suitable for use as a pre-filter for higher grades of air filtration, or for use as a simple for general applications.

Options:

The pocket filter is available a large range of standard sizes and pocket lengths.

Class Size(mm)

Pocket No.



Filter area( m2)

F7 592 * 592 * 650 10 8.06
592 * 592 * 650 8 6.60
592 * 592 * 550 8 5.58
287 * 592 * 650 5 4.03
287 * 592 * 650 4 3.30
287 * 592 * 550 4 2.79
490 * 592 * 650 8 6.45
490 * 592 * 650 6 4.95
490 * 592 * 550 6 4.19

If you don't see the pocket filter bag’s size you need in our website.
