Home > PRODUCTS > Air Filter > Bag Air Filter
  1. /d/pic/bag-filter.jpg

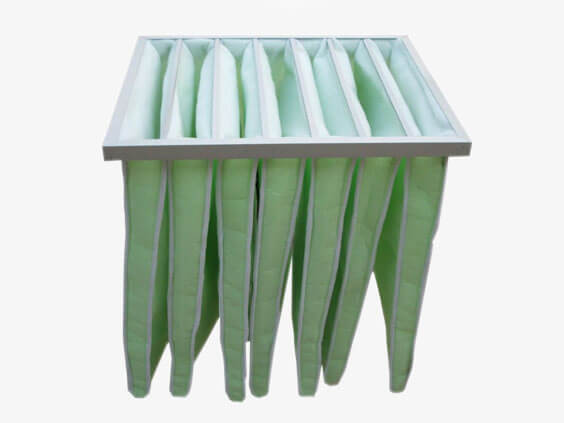

F5 Bag Air Filter Element

Product: Bag Air Filter
Frame: Aluminum Alloy or Stainless Steel
Media: Non-woven Filter, Synthetic Fiber
Class: F5, F6, F7, F8
Certificate: ISO&CE
Description:

Bag Air Filter is the most commonplace type of air filter. The filter’s bag features a tapered design that delivers high air flow and dust retention capacities in a format requiring little space as the filter is packed for transportation. Filters are available in various executions with filter media and frame alternatives which can be customized to satisfy the operational conditions and requirements in you specific ventilation unit.

Specifications:
Product Bag Air Filter
Frame Aluminum Alloy or Stainless Steel
Media Non-woven Filter, Synthetic Fiber
Class F5, F6, F7, F8
Certificate ISO&CE
Application:

The Air pre-filtration system for non-dust room, hospital, pharmaceutical factory, electronics factory, spray booth and other filtration systems which are in high need of clean air.

Options:
Class Size(mm)

Pocket No.
Filter area( m2)

F5 592 * 592 * 600 8 6.18
592 * 592 * 600 6 4.64
592 * 592 * 500 6 3.86
287 * 592 * 600 4 3.09
287 * 592 * 600 3 2.32
287 * 592 * 500
3 1.93
490 * 592 * 600 6 4.64
490 * 592 * 600 5 3.87
490 * 592 * 500 5 3.22
