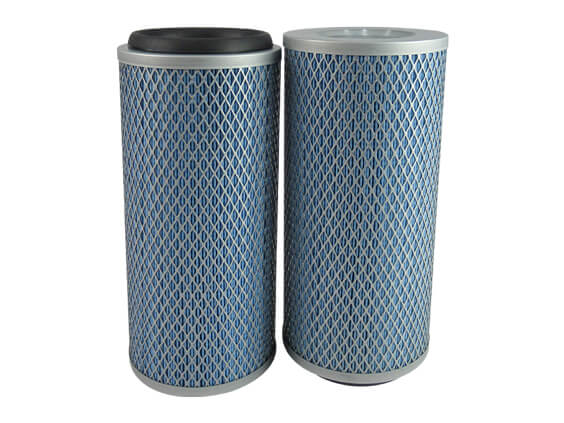

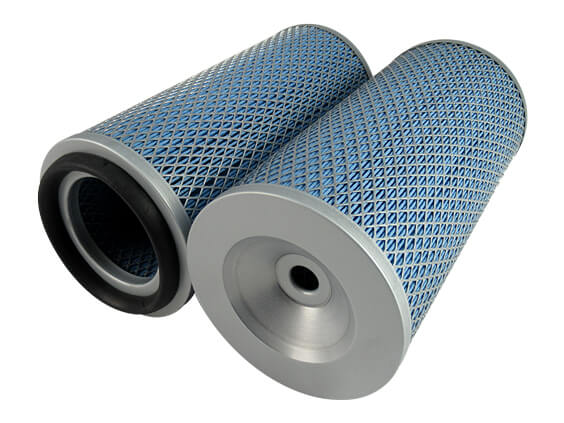

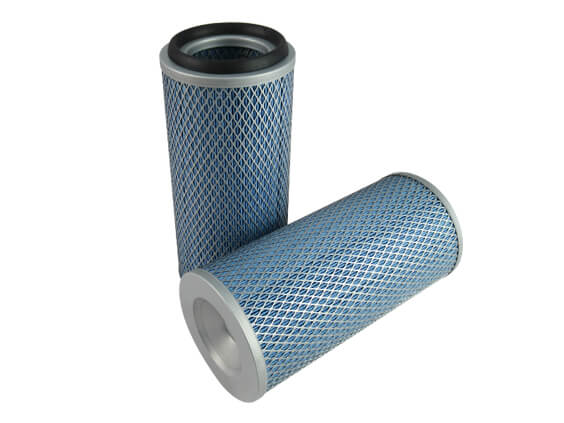

Air Compressor Air Filters Cartridge

Material: Paper
Length: Custom Made
Outer diameter: Custom made
End Caps: Plastic
Filtration rate: Custom made


Air Compressor Air Filter Cartridge are used in condensed air lines as a way to stop liquids and solid contaminants from entering air compressors. They stop these contaminants from entering the equipment and causing damage.


Product name:Air Compressor Air Filters Cartridge

Filtration rate:10-15μm

Filtration efficiency:98%

Feature:Double-layer filter

Suitable machine:UNITES UD-160 air compressor

Certificate:ISO 9000


The air filter is a paper filter, which has the advantages of excellent filtration. The function of the air filter is to filter the air entering the compressor, so that solid impurities such as dust do not enter the compressor main body, so as to prevent the abrupt increase in wear of the relative slide. At the same time, the presence of dust can also accelerate the oxidation of lubricating oil. Therefore, the dust outside the paper core should be removed in time



When the indicator of the air filter on the instrument panel is on, it should be cleaned or replaced in time. It is recommended to remove the air filter element every week to blow off part of the dust on the surface.
