  2. Oil And Gas Separator Filters
  3. Oil And Gas Separator Filters

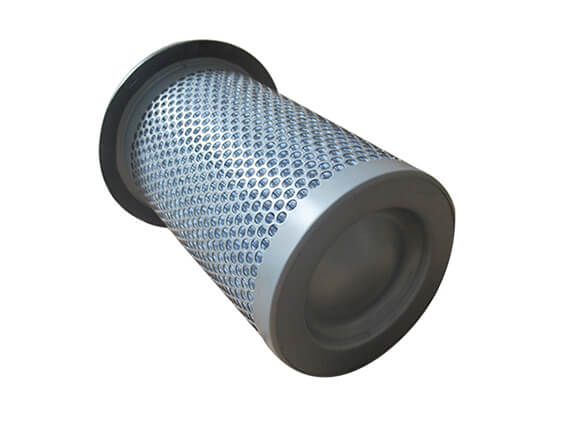

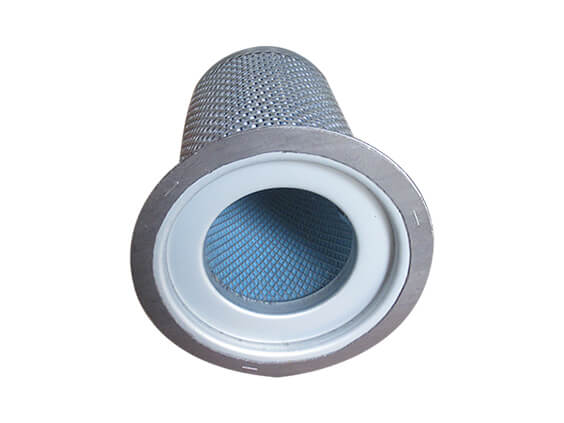

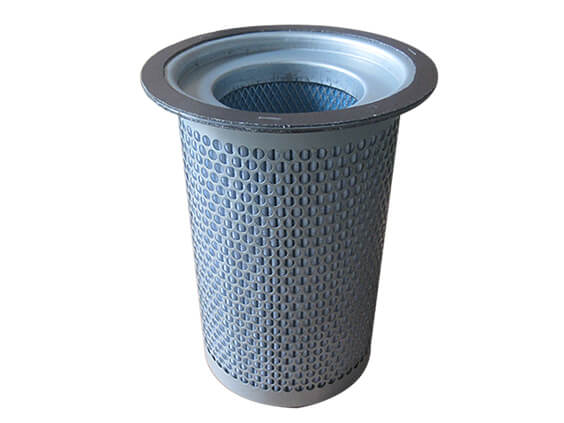

Oil And Gas Separator Filters

Outer diameter: 3.5 inches, 4.5 inches, 6 inches
Length: 18, 20, 32, 36, 40, 72, 16 inches
Filter skeleton material: stainless steel and other materials
Core: Stainless steel / PP
End Caps: PP / Stainless steel / Galvanized
Description:



The function of the oil and gas separator of the press is to separate the oil in the compressed air. The oil separator is one of the key components of the oil air compressor. Thereby an oil-free compressed air is obtained. The performance of the oil and gas separator directly affects the efficiency, fuel consumption and compressed air quality of the compressor. High-quality oil and gas separators should have the characteristics of complete oil and gas separation, low initial resistance and long service life. The oil and gas separator efficiently separates the oil in the compressed air to ensure the quality of the clean air.



Specifications:

Outer diameter: 3.5 inches, 4.5 inches, 6 inches;
Length: 18, 20, 32, 36, 40, 72, 16 inches
Filter skeleton material: stainless steel and other materials
Core: Stainless steel / PP
End Caps: PP / Stainless steel / Galvanized
Micron: 1-200 micron
The initial pressure difference: 0.4 psig or less
Replace the differential pressure: < 0.6 psig
Operating temperature: 0 ~ 120 °C

description and precautions:



The oil and gas separator filter media is made of glass fiber composite filter material , The misty oil and gas mixture in compressed air can be completely filtered out through the oil core.

The compressed air oil content can be controlled at 36PPm, and the compressed air oil mist particles can be controlled below 0.1um.

The oil core life is 3500-5200h, and the quality and environment of the lubricant have a serious impact on its service life.

The secondary return line and check valve remain unobstructed and the specified position.

The exhaust pressure is adjusted to the specified value.



Feature:



The oil and gas separator core adopts new filter materials, which is more efficient and has a longer service life;



Reduce the amount of lubricant loss and improve the quality of compressed air;



Extend the service life of the fine fraction and reduce the cost of machine use
