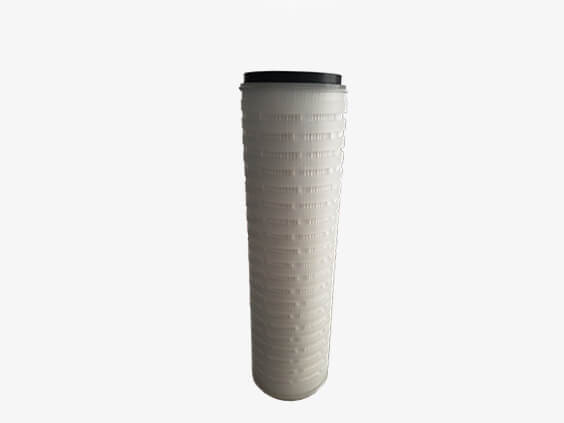

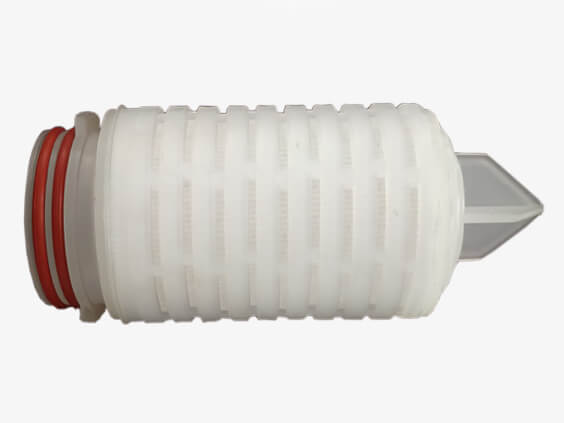

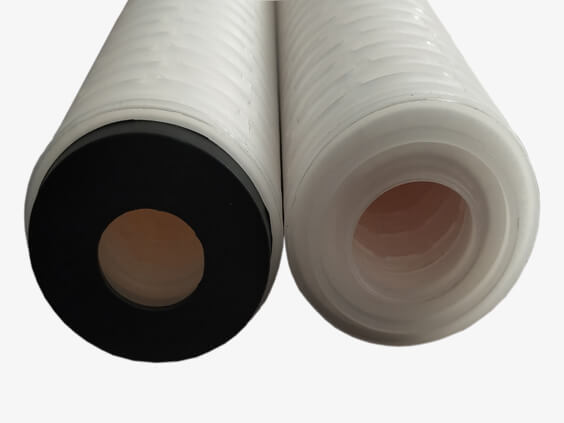

PP Microporous Folding Water Filter Series

Type: Cartridge
Media: PP,PS,PTEF,NL,PVDF
OD: 69mm
Length: 5",10",20",30",40"
Filtration rate: 0.1um、0.22um、0.45um、1um、3um、5um、10um、20um、30um、50um、100um
Description:

Microporous folding filter adopts polypropylene fiber membrane (PP), nylon film (NL), polysulfone (PS), polytetrafluoroethylene (PTEF), polyvinylidene fluoride (PVDF), and non-woven (screen) support layers folded, the filter shell, central core and end caps using hot melt welding technology processing molding, without any glue, no leakage, no secondary pollution. Through the microscrees of the membrane surface to achieve a certain role in particle filtration.

Specifications:
Product PP Microporous Folding Water Filter
Max.working Temp.: 1Bar 80℃
Media PP,PS,PTEF,NL,PVDF
Out Diameter 69mm
Length 5",10",20",30",40"
Filtration rate 0.1um、0.22um、0.45um、1um、3um、5um、10um、20um、30um、50um、100um
Features and Benefits:

Wide chemical compatibility

Higher dirt holding capacity

Low pressure drop

Applications:

Pharmaceutical industry: all kinds of antibiotics and other liquid pre-filtration
Food and beverage industry: alcohol, mineral water, drinking water filtration
Oil industry: oil field water filtration
The electronics industry: high purity water pre-filtration
Chemical industry: variety of organic solvents, acid, lye filtration
