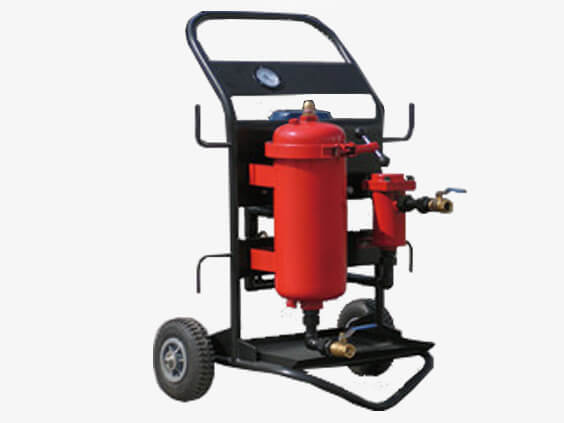

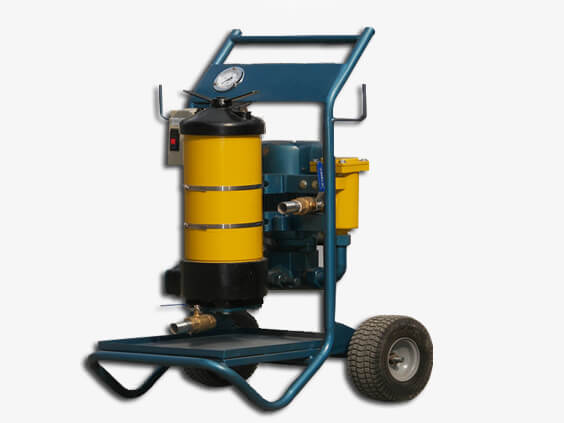

The oil filter consists of a motor-driven for gear pumps , low noise , strong self-absorption capacity , smooth running characteristics.
High-pressure pipe with overflow protection devices , can effectively protect the safety of the hydraulic system.
Thermal relay protection against electrical overload caused by electrical damage.
Suction port coarse filter to protect the pump and extend the life of the main filter.
Rated Pressure (MPa) |
0.6 |
Pressure Lost (MPa) |
<0.01 |
Pre-precision (micron) |
100 |
Fine precision (micron) |
3,5,10,20,40 |
Temperature (℃) |
5-80 |
Viscosity (cSt) |
10-160 |
Power(V) |
AC380 |
Model No. | Description | Rated Flow(L/min) | Motor Power (kw) | Weight(kg) | Dimensions (mm) |
LYC-A25 | Movable Oil Purifier | 25 | 0.55 | 35 | 430 x 350 x 950 |
LYC-A32 | Movable Oil Purifier | 32 | 0.75 | 64 | 430 x 350 x 950 |
LYC-A40 | Movable Oil Purifier | 40 | 1.1 | 75 | 720 x 680 x 1020 |
LYC-A50 | Movable Oil Purifier | 50 | 1.1 | 80 | 720 x 680 x 1020 |
LYC-A63 | Movable Oil Purifier | 63 | 1.5 | 85 | 720 x 680 x 1020 |
LYC-A100 | Movable Oil Purifier | 100 | 2.2 | 100 | 720 x 750 x 1020 |
LYC-A150 | Movable Oil Purifier | 150 | 3.0 | 135 | 720 x 750 x 220 |
