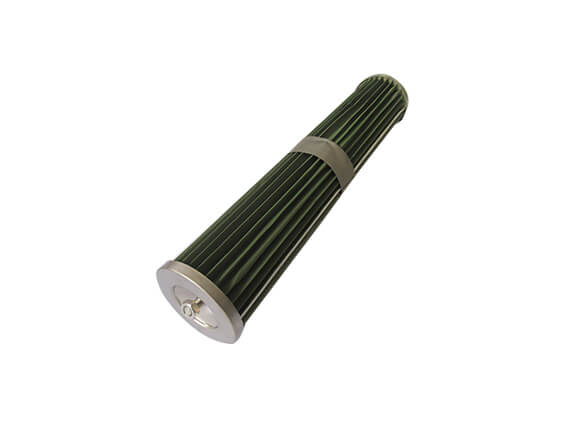

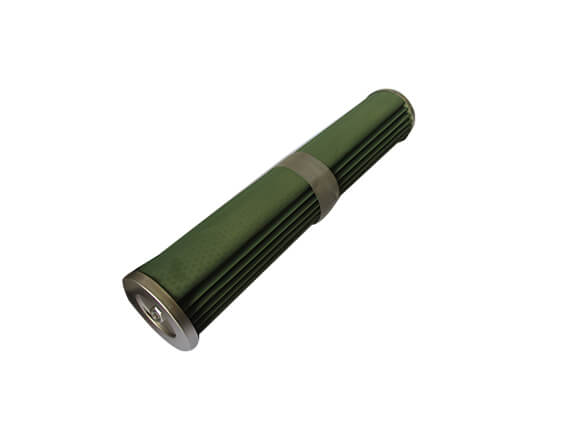

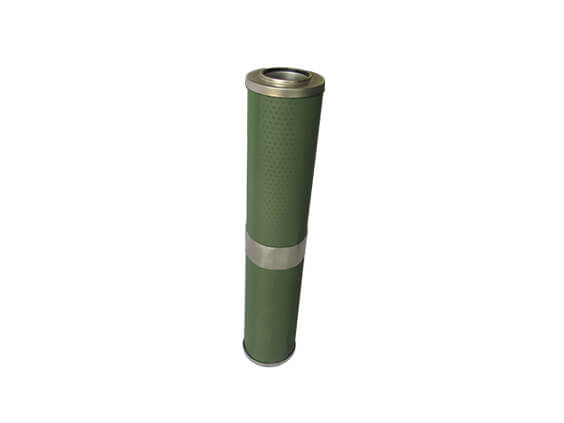

Replacement Pall Separator Filter 1201652

Type: Pall Separator Filter 1201652
Length: 22.000 inches
Outer diameter: 6.000 inches
Filtration rate: 125 micron
Maximum Flow: 120 GPM
Description:



The Replacement Pall Separator Filter 1201652 can be applied to the oil purifier cart and the aviation fuel system. It is the second process of high-performance separation in oil/water separation.



Specifications:
Product Pall Separator Filter 1201652
Maximum Flow 120 GPM
Media Nylon
End caps Galvanized
Out Diameter 6.000 inches
Length 22.000 inches
Operating Temperature Range 250F
Application:





Removal of contaminants from natural gas pipelines at the inlet of the compressor station to avoid damage to the compressor and prevent wear of the cylinders and valves.

Prevent the injection of solid and liquid contaminants before the natural gas storage station.

Removal of contaminants from fuel gas lines in engines, power plants and pre-plants.

Removal of solid and liquid contaminants in front of the gas treatment station to prevent contamination of process equipment and poisoning of the catalytic bed.

Downstream of the reciprocating compressor to remove the lubricating oil carried in the air stream.

Prevent fracturing and sanding of desiccant and contamination of paraffin and asphaltenes before the solid desiccant bed.

Remove water and pipeline contaminants from the inlet gas stream at the dewatering and treatment station.



Feture:



1. The filtration effect of the particle suspension in the gas reaches 99%
2. It is recommended to replace the differential pressure: when the temperature reaches 135 degrees Celsius, the replacement pressure difference is 4.1 bar.
3. High filtration area, up to 54 square feet, long service life
4. Filtration accuracy can reach 0.5-40 microns
