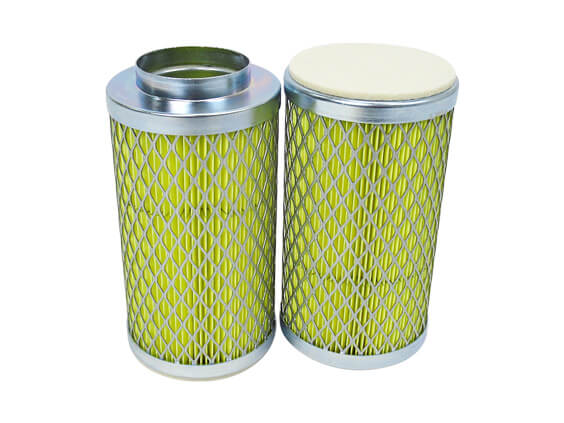

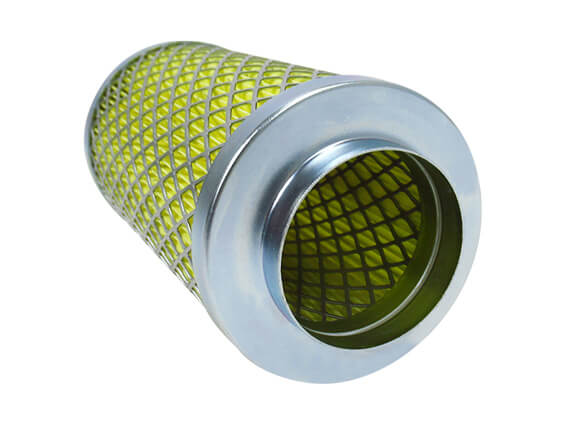

F8 Custom Paper Air Filter Cartridge 80x151 Huahang Filter Supply

Description:

The Custom Paper Air Filter Cartridge is a high-efficiency air filtration solution designed for heavy-duty engines, air compressors, industrial ventilation systems, and dust collection equipment. This cartridge delivers reliable particulate removal in a robust, field-serviceable package.

Constructed from high-quality pleated cellulose paper media, this filter cartridge offers an excellent balance of filtration efficiency, dust-holding capacity, and airflow. The deep-pleat design maximizes the effective filtration surface area within the 80x151 envelope, allowing for longer service intervals and reduced pressure drop. The media achieves up to 99.5% filtration efficiency, effectively preventing dust, dirt, and airborne contaminants from reaching sensitive internal components.

Specifications:

Type	Custom Air Filter Cartridge
Dimension	80x151 mm
End caps	Carbon steel
Filter material	Yellow paper
Filtration efficiency	F8
Custom made	Available

Video:

Features:

High-Efficiency Paper Filter Media: Premium pleated cellulose paper media, specially treated with resin reinforcement for increased strength, moisture resistance, and dimensional stability under varying airflow conditions. Achieves up to 99.5% filtration efficiency.
Robust Construction: Features heavy-gauge steel end caps (galvanized or zinc-plated) and a rigid perforated steel inner center tube. This construction prevents collapse under high-vibration or pulse-jet cleaning conditions, ensuring the element maintains its shape and seal integrity throughout its service life.
Wide Temperature Range: Paper media is typically rated for continuous operation from -26°C to +100°C, offering good resistance to oils and moisture found in ambient air.
Comprehensive Seal Options: Available with various seal/gasket configurations including polyurethane gaskets, rubber O-rings, or flat gaskets to ensure a leak-tight fit in your specific housing.

Application

The Custom Paper Air Filter Cartridge serves critical air intake protection roles across multiple industries:

Heavy-Duty Engines: Intake air filtration for diesel engines in mining trucks, agricultural tractors, and industrial power generation equipment. Dry paper elements are the industry standard for engine intake systems.
Air Compressors: Pre-filtration for industrial air compressor intake systems, removing airborne particulates before they can damage compressor valves and downstream equipment.
Industrial Ventilation: Dust control and particulate removal in manufacturing facilities, processing plants, and warehouses.
Dust Collection Pre-Filtration: Primary or secondary stage filtration in industrial dust collectors, extending the life of finer downstream filters.

Manufacturer & Supplier : Huahang Filter

Huahang Filter is a globally recognized manufacturer and supplier of high-performance filtration solutions. Unlike distributors who simply resell stock products, Huahang is a true manufacturing powerhouse with full control over design, material selection, production, and quality assurance. Our anti-static filter cartridges are engineered with intrinsically conductive materials and permanent anti-static properties, ensuring reliable static dissipation throughout the filter's service life .

Why Choose Huahang Filter

20+ Years of Industry Expertise: We've spent over two decades specializing in industrial filtration, particularly in explosive dust environments. Our engineering team averages 20 years of experience, understanding the critical requirements of static control and explosion prevention across chemical, pharmaceutical, metalworking, and food processing industries.
Engineering-Driven Problem Solving: We don't just take orders—we solve problems. Whether you need filters for hazardous ATEX Zone applications, custom dimensions for unique dust collectors, or specific media treatments for challenging dust types, our engineers work directly with you to develop the right solution.
Built to Last, Priced for Reality: Through vertical integration and lean manufacturing, we deliver filters that meet premium quality standards at prices that make sense for industrial budgets. We use premium materials—conductive polyester media, heavy-gauge steel end caps with six-ear precision tooling, PTFE membrane coatings—because cutting corners on safety is never an option.

Global Experience, Local Attention: Our filters support customers in over 120 countries, yet we maintain the responsiveness of a specialized manufacturer. When you contact Huahang, you're working with people who understand that every dust collection application matters.
Comprehensive Customization: From anti-static only to combinations with flame-retardant, oil-proof, waterproof, or PTFE membrane treatments, we tailor each cartridge to your specific operating conditions. End cap materials, seal types, and dimensions are all customizable.

FAQ

Q1: Can paper air filter cartridges be cleaned and reused?

A: Generally, we do not recommend cleaning paper air filters. Cleaning (blowing with compressed air or washing) can damage the delicate cellulose fibers, creating pinholes that allow dirt to pass through. Paper filters are designed as disposable, cost-effective solutions. For reusable applications requiring cleaning, consider our stainless steel mesh or synthetic media options.

Q2: What is the filtration efficiency of this paper filter cartridge?

A: Our standard cellulose paper media typically offers an efficiency of up to 99.5% for particles in the 2-5 micron range. This is suitable for most engine and compressor intake applications. For critical applications requiring higher efficiency (e.g., HEPA levels), we can discuss synthetic or nanofiber media upgrades.

Q3: Is this filter suitable for use in wet or humid conditions?

A: Our standard paper media has a resin treatment that provides some moisture resistance. However, if the filter becomes completely soaked with water, it can restrict airflow and may eventually fail. For consistently humid or wet environments, we recommend requesting our water-repellent treated paper media or switching to a synthetic media option.

Q4: How do I ensure the filter seals properly in my housing?

A: We offer various gasket types to ensure a leak-proof seal. Common options include:

Polyurethane (PU) Gaskets: Bonded to the end caps, providing an excellent, durable seal
Flat Rubber Gaskets: For housings that compress the filter between two flat surfaces
O-Ring Seals: For housings with a groove design

Please specify your housing type or send a photo/drawing, and we will match the seal configuration.
