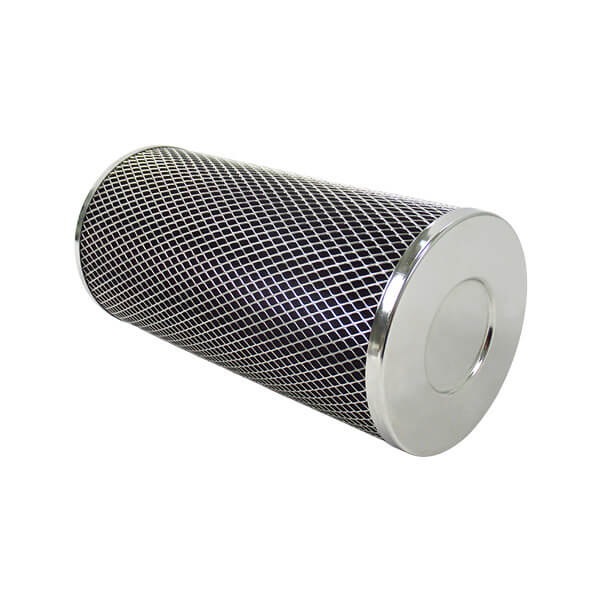

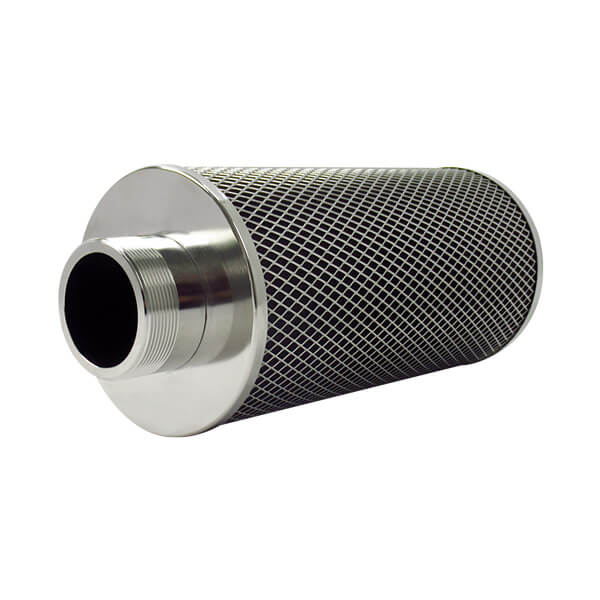

Black Sponge-Wrapped Air Filter Element Huahang Filter Supply

Description:

This Black Sponge-Wrapped Air Filter Element is a two-stage filter in one body. The outer layer is a black polyurethane sponge—open-cell, oil-resistant, and washable. Its job is to stop bugs, leaves, sand, and other large particles before they ever reach the inner filter. The inner element is a high-density pleated paper or non-woven media that catches the fine dust that the sponge lets through. When the sponge gets dirty, you pull it off, wash it, dry it, and put it back. The inner element lasts much longer because the sponge takes the abuse.

This 150x340 size is common in medium-to-large air compressors, diesel generators, construction equipment, and agricultural machinery. If you’re tired of buying expensive OEM filter kits every month, this is your replacement.

Specifications:

Type	Custom Air Filter Cartridge
Dimension	150x340 mm
End caps	304 stainless steel
Filter material	Black sponge-wrapped
Filtration efficiency	99.8%
Custom made	Available

Video:

Features:

Washable Sponge Outer Layer: When the sponge looks dirty, take it off. Wash it with mild soap and water. Squeeze out the moisture (don’t wring—pat dry). Reinstall. You can do this dozens of times. That alone cuts your filter spend in half.
Oil-Resistant Polyurethane Sponge: The sponge is formulated to withstand oil mist from blow-by or lubricated air compressors. It won’t break down, swell, or lose its open-cell structure when exposed to light oil.
High-Efficiency Inner Media: The pleated inner element uses automotive-grade filtration media with a resin-impregnated structure. It traps fine dust down to 5–10 microns, protecting sensitive engine components like turbochargers, cylinders, and valves.
150x340 Standard Size:This is a direct replacement for many OEM air filter part numbers. Always check your housing dimensions, but this size covers a wide range of compressors and engines.
Low Initial Restriction: The open-cell sponge creates very little resistance to airflow, even when dry. Your equipment gets the air it needs without the engine working harder to pull through a clogged filter.
Seamless Bonding Between Layers: The sponge is thermally or chemically bonded to the inner filter’s outer screen. No gaps where unfiltered air can sneak through. What goes in must pass through sponge first, then paper.

Application

The Custom Air Filter Cartridge serves critical air intake protection roles across multiple industries:

Heavy-Duty Engines: Intake air filtration for diesel engines in mining trucks, agricultural tractors, and industrial power generation equipment. Dry paper elements are the industry standard for engine intake systems.
Air Compressors: Pre-filtration for industrial air compressor intake systems, removing airborne particulates before they can damage compressor valves and downstream equipment.
Industrial Ventilation: Dust control and particulate removal in manufacturing facilities, processing plants, and warehouses.
Dust Collection Pre-Filtration: Primary or secondary stage filtration in industrial dust collectors, extending the life of finer downstream filters.

Manufacturer & Supplier : Huahang Filter

Huahang Filter is a globally recognized manufacturer and supplier of high-performance filtration solutions. Unlike distributors who simply resell stock products, Huahang is a true manufacturing powerhouse with full control over design, material selection, production, and quality assurance. Our anti-static filter cartridges are engineered with intrinsically conductive materials and permanent anti-static properties, ensuring reliable static dissipation throughout the filter's service life .

Why Choose Huahang Filter

20+ Years of Industry Expertise: We've spent over two decades specializing in industrial filtration, particularly in explosive dust environments. Our engineering team averages 20 years of experience, understanding the critical requirements of static control and explosion prevention across chemical, pharmaceutical, metalworking, and food processing industries.
Engineering-Driven Problem Solving: We don't just take orders—we solve problems. Whether you need filters for hazardous ATEX Zone applications, custom dimensions for unique dust collectors, or specific media treatments for challenging dust types, our engineers work directly with you to develop the right solution.
Built to Last, Priced for Reality: Through vertical integration and lean manufacturing, we deliver filters that meet premium quality standards at prices that make sense for industrial budgets. We use premium materials—conductive polyester media, heavy-gauge steel end caps with six-ear precision tooling, PTFE membrane coatings—because cutting corners on safety is never an option.

Global Experience, Local Attention: Our filters support customers in over 120 countries, yet we maintain the responsiveness of a specialized manufacturer. When you contact Huahang, you're working with people who understand that every dust collection application matters.
Comprehensive Customization: From anti-static only to combinations with flame-retardant, oil-proof, waterproof, or PTFE membrane treatments, we tailor each cartridge to your specific operating conditions. End cap materials, seal types, and dimensions are all customizable.

FAQ

Q: Can I wash just the sponge, or the whole filter?

A: Wash only the black sponge outer layer. Remove it carefully from the inner element. The inner pleated paper should never get wet—it will swell, harden, and lose efficiency. If the inner element is dirty, replace it.

Q: How do I wash the sponge correctly?

A: Remove sponge. Rinse under warm tap water (not hot) to remove loose dirt. Soak in mild detergent solution for 10 minutes. Gently squeeze (don’t twist or wring). Rinse until water runs clear. Pat dry with a towel. Air dry completely before reinstalling. Never use compressed air to blow-dry—it will tear the foam.

Q: Does the black sponge catch oil?

A: Yes, the polyurethane sponge is oil-resistant and will trap light oil mist from compressor blow-by. However, heavy liquid oil will eventually saturate the sponge and increase pressure drop. If you have excessive oil carry-over, fix the separator first.

Q: What is the temperature limit?

A: The sponge remains flexible down to -30°C (no cracking). The inner paper media and rubber end caps can handle up to 110°C continuous. For higher temperatures (e.g., turbocharged intake air), specify high-temperature silicone end caps and synthetic media.
