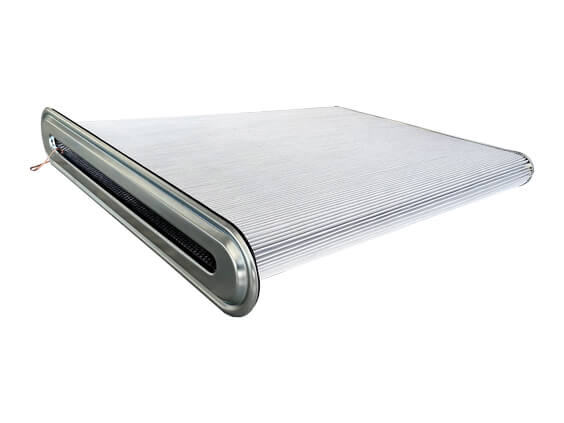

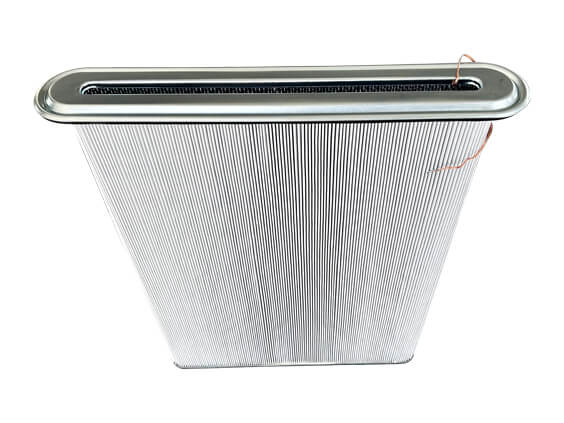

Anti-static Dust Collect Filter Cartridge PWA-95-10 Manufacturer Supply

Description:

The PWA‑95‑10 anti‑static dust collector filter cartridge is a high‑performance filtration element engineered for industrial dust collection systems handling ignition‑sensitive, explosive, or combustible particulates. With a filtration area of 10 m² (108 ft²) , this cartridge is manufactured to your exact specifications, providing reliable contamination control for FilterMax units and compatible dust collection systems where static electricity poses a significant fire or explosion hazard.

Industrial dust collection systems processing materials such as metal fines, wood dust, coal dust, grain dust, chemical powders, and other combustible particulates are subject to the hidden hazard of static electricity. As dust particles rub against the filter media at high velocity, electrostatic charges accumulate. Without proper dissipation, these charges can discharge as sparks—with sufficient energy to ignite a combustible dust cloud, causing a catastrophic explosion.

Specifications:

Type	Custom Air Filter Cartridge
Dimension	Customized/Standard
Working temperature	-20℃ ~ + 120 ℃
Filter material	Anti-static polyester fabric
Origin	Henan, China
Flow direction	Outside - inside

Note: All specifications are fully customizable. Provide your existing filter drawing, sample, or detailed measurements for a precise quotation.

Video:

Application:

The Anti-static Dust Collect Filter Cartridge is specifically designed for industries handling combustible or explosive dusts:

Industry	Applications
Chemical Processing	Organic dust, pigment dust, resin dust, carbon black, sulfur—high-risk explosive environments where static discharge could trigger combustion
Pharmaceutical Manufacturing	Active pharmaceutical ingredients , excipient powders, tablet pressing—requires ATEX-compliant filtration and zero static risk
Metalworking (Combustible Metals)	Aluminum dust, magnesium, titanium, fine metal powders from grinding, polishing, and sanding—extremely high explosion risk requiring mandatory anti-static filters
Woodworking (Fine Wood Flour)	Sanding dust, MDF processing, fine wood flour—static buildup common and ignition risk significant
Food Processing (Combustible Powders)	Flour dust, sugar dust, grain dust, starch, cocoa powder—powders can form explosive clouds; anti-static essential
Battery & EV Materials	Lithium battery material handling, graphite dust, carbon materials—conductive dusts require special static control

Anti-static Technology Explained

Our anti-static filter cartridges utilize two primary methods to ensure safe operation in explosive environments:

1. Conductive Fibers: Stainless steel or carbon fibers are blended into the polyester media during manufacturing, creating a conductive matrix throughout the entire filter structure. This method provides permanent, uniform conductivity that cannot wear off or degrade over time.

2. Conductive Coating: A specialized carbon-based coating is applied to the surface of the polyester fabric, providing a continuous conductive path across the media surface.

The Grounding Path: When properly installed with groundable metal end caps connected to the housing earth point, any static charge generated by dust friction is safely dissipated to ground, preventing spark formation that could ignite combustible dust clouds .

Why This Matters: In combustible dust environments, static electricity is a hidden but deadly hazard. Fine powders moving through ducts and across filter surfaces generate significant static charges. Without proper dissipation, these charges can accumulate and discharge as sparks—with enough energy to ignite a dust cloud, causing a catastrophic explosion. Anti-static filters eliminate this risk by providing a continuous conductive path to ground.

Manufacturer & Supplier : Huahang Filter

Huahang Filter is a globally recognized manufacturer and supplier of high-performance filtration solutions. Unlike distributors who simply resell stock products, Huahang is a true manufacturing powerhouse with full control over design, material selection, production, and quality assurance. Our anti-static filter cartridges are engineered with intrinsically conductive materials and permanent anti-static properties, ensuring reliable static dissipation throughout the filter's service life .

Why Choose Huahang Filter

20+ Years of Industry Expertise: We've spent over two decades specializing in industrial filtration, particularly in explosive dust environments. Our engineering team averages 20 years of experience, understanding the critical requirements of static control and explosion prevention across chemical, pharmaceutical, metalworking, and food processing industries.
Engineering-Driven Problem Solving: We don't just take orders—we solve problems. Whether you need filters for hazardous ATEX Zone applications, custom dimensions for unique dust collectors, or specific media treatments for challenging dust types, our engineers work directly with you to develop the right solution.
Built to Last, Priced for Reality: Through vertical integration and lean manufacturing, we deliver filters that meet premium quality standards at prices that make sense for industrial budgets. We use premium materials—conductive polyester media, heavy-gauge steel end caps with six-ear precision tooling, PTFE membrane coatings—because cutting corners on safety is never an option.

Global Experience, Local Attention: Our filters support customers in over 120 countries, yet we maintain the responsiveness of a specialized manufacturer. When you contact Huahang, you're working with people who understand that every dust collection application matters.
Comprehensive Customization: From anti-static only to combinations with flame-retardant, oil-proof, waterproof, or PTFE membrane treatments, we tailor each cartridge to your specific operating conditions. End cap materials, seal types, and dimensions are all customizable.

FAQ

Q1: What makes this filter anti‑static?

A: The filter utilises core‑treated anti‑static media—the anti‑static element is incorporated into the core of the filter media during manufacturing. This ensures dissipative properties in all directions and throughout the entire filter lifetime, even with abrasive dust. Unlike surface coatings that can wear off, core‑treated anti‑static properties are permanent and do not degrade over time.

Q2: Why do I need an anti-static filter cartridge?

A: If your dust collection system handles combustible dusts (aluminum, coal, pharmaceutical powders, flour, sugar, plastics, carbon black), static electricity generated by dust friction can create sparks that ignite the dust cloud, causing a catastrophic explosion. Anti-static filters prevent this by safely dissipating static charges to ground. Standard polyester filters do NOT provide this protection and can be dangerous in explosive dust environments .

Q3: How does the anti-static property work?

A: The anti-static property is achieved by incorporating conductive micro-fibers (stainless steel or carbon) directly into the polyester filter media or applying a permanent anti-static coating. This creates a continuous conductive path throughout the filter. When properly installed with groundable metal end caps connected to the housing earth point, static charges are safely dissipated to ground. Conductive fiber technology provides permanent conductivity that cannot wear off over time .

Q4: How do I properly ground this filter cartridge?

A: Proper grounding requires three elements:

Conductive Media: The filter media must be conductive (our anti-static media)

Groundable End Caps: Metal end caps that contact the conductive media (standard on all our cartridges)

Housing Ground: The filter housing must have a grounding lug connected to earth ground
Important: The anti-static property is useless if the charge has no path to escape—always verify the connection between the filter, the tubesheet, and the housing ground.
