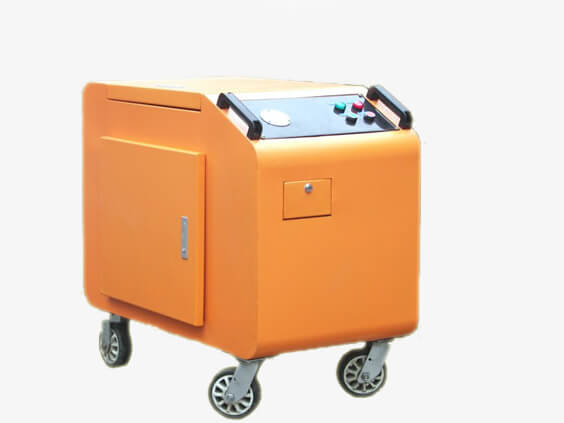

This machine adopts refined shell covered all the components to protect equipment from outside contamination , especially for the use of
environmental requirements of the occasion .The machine consists of a motor-driven for gear pumps , low noise , strong self-absorption capacity,
smooth running characteristics .
High-pressure pipe with overflow protection devices , can effectively protect the safety of the hydraulic system . Thermal relay protection against
electrical damage caused by motor overload .
Suction port coarse filter to protect the pump and extend the life of the main filter .
Rated Voltage (MPa) |
0.6 |
Rated Power(MPa) |
<0.02 |
Pre-precision (micron) |
100 |
Fine precision (micron) |
3,5,10,20 |
Temperature (℃) |
5-80 |
Viscosity (cSt) |
10-160 |
Power(V) |
AC380 |
Model No. | Description | Rated Flow(L/min) | Motor Power (kw) | Weight(kg) | Dimensions (mm) |
LYC-C32 | Movable Oil Purifier | 32 | 0.75 | 135 | 950 x 560 x 900 |
LYC-C40 | Movable Oil Purifier | 40 | 1.1 | 145 | 950 x 560 x 900 |
LYC-C50 | Movable Oil Purifier | 50 | 1.1 | 150 | 950 x 560 x 900 |
LYC-C63 | Movable Oil Purifier | 63 | 1.5 | 156 | 950 x 680 x 1020 |
LYC-C100 | Movable Oil Purifier | 100 | 2.2 | 182 | 1100 x 660 x 1000 |
